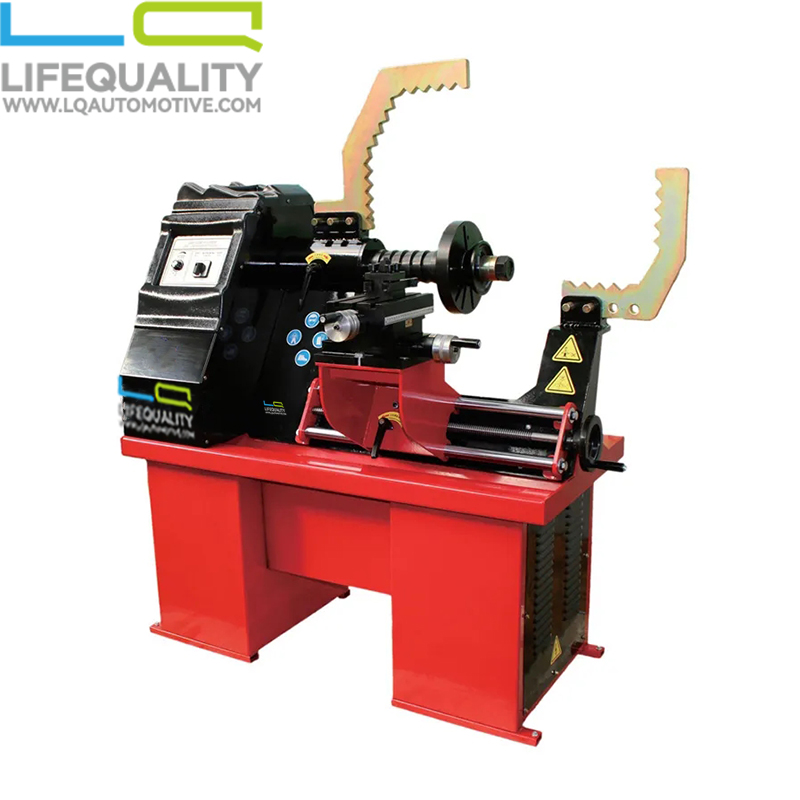

The Car Alloy Wheel Rim Straightening Machine is a kind of tyre and wheel straightener widely used in vehicle and wheel repair shops. The Car Alloy Wheel Rim Straightening Machine can adjust the deformed alloy wheels to achieve the desired performance. The Car Alloy Wheel Rim Straightening Machine can be used to repair various alloy wheels with warp, deformation, and sunken etc. in a professional way and quickly address the bend and does the repair in minutes with a minimum of heat or machining.
Features：
1.Infinitely variable speed of spindle（Electrically controlled）
2.Scaleplate marking errors（Magnetic correction）
3. Heating（High-pressure spray gun）
4.Hydraulic correction（Special hydraulic jack）
5.Mechanic correction（Special wrench）
6.Machining edge and all directions（Lathe and special cutters）
Specifications
Machining capacity ：10"—26"(30″optional)
Spindle rotation： 0-300rpm (infinitely variable)
Spindle diameter ：70mm
Hydraulic piston power ：1.5kw/0.75 hp Sound 35db, 3 Phase-single phase, 220V-380V
Working motor mechanic：1.5kw,1 hp, 3 Phase-single phase, 220V-380V
Working pressure：140 bar
Net/Gross weight ：350/4000kg
Diameter of piston cylinder ：63mm which comes to as radius 3, 15cm
Size：1600 * 800 * 1400mm
