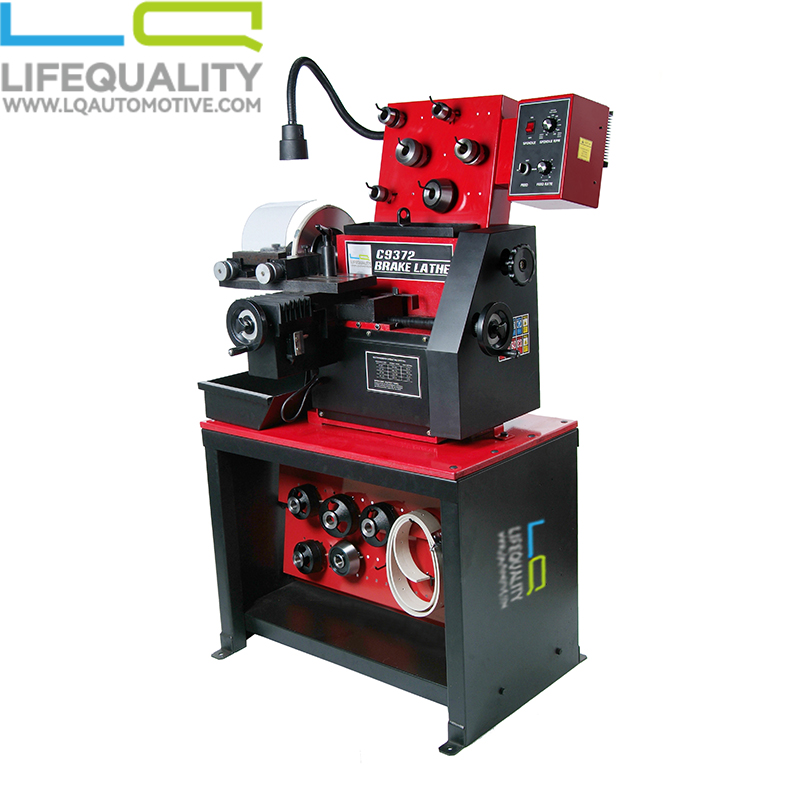

Product Features
1. A tool tray and top board mean that you can easily take tools and adapters.
2. Variable spindle speed and cross feed speed provide a perfect finish.
3. Two automatic shut-off switches make the motor of disc and drum automatic-stop after finishing.
4. Positive rate tooling for optimum finish with a single pass.
5. The perfect finish meets or exceeds all OEM specifications.
Main Specifications
Feed rates-Rotor and Drum | 0”-0.026”(0mm-0.66mm) | Spindle Speed | 70-320RPM |
Feed Rates Per Minute | 2.54”(64.5mm) | Spindle Weight Capacity (Standard 1” Arbor) | 1501bs(68Kg) |
Flywheel Diameter | 6”-24”(152-610mm) | Rotor Diameter | 4”-20”(102-508mm) |
Maximum Rotor Thickness | 2.85”(73mm) | Drum Diameter | 6”-19.5”(152-500mm) |
Drum Depth | 6.5”(165mm) | Motor | 110V/220V 50/60HZ |
Gross Weight | 300KG | Dimension | 1100×730×720mm |
