Parameters:
Spindle Travel | 6.875” (175mm) | Spindle Speed | 70,88,118 RPM |
Spindle Feed Speed | 0.002”(0.05mm)-0.02”(0.5mm) Rev | Cross Feed Speed | 0.002”(0.05mm)-0.02”(0.5mm) Rev |
Handwheel Graduations | 0.002”(0.05mm) | Rotor Diameter | 7”-15” (180mm-381mm) |
Rotor Thickness | 1.875” (48mm) | Drum Diameter | 6”-17.7” (152-450mm) |
Drum Depth | 6.875” (175mm) | Motor | 110V/220V/380V.50/60Hz |
Gross Weight | 290KG | Dimension | 1010×950×1150mm |
Features:
1. Quickly, accurately and efficiently cutting both drum and rotor.
2. Fast and slow setting.
3. Three kinds of speed to choose for spindle speed
4. A convenient design to quickly change from rotor to drum
5. Stop automatically after the cutting

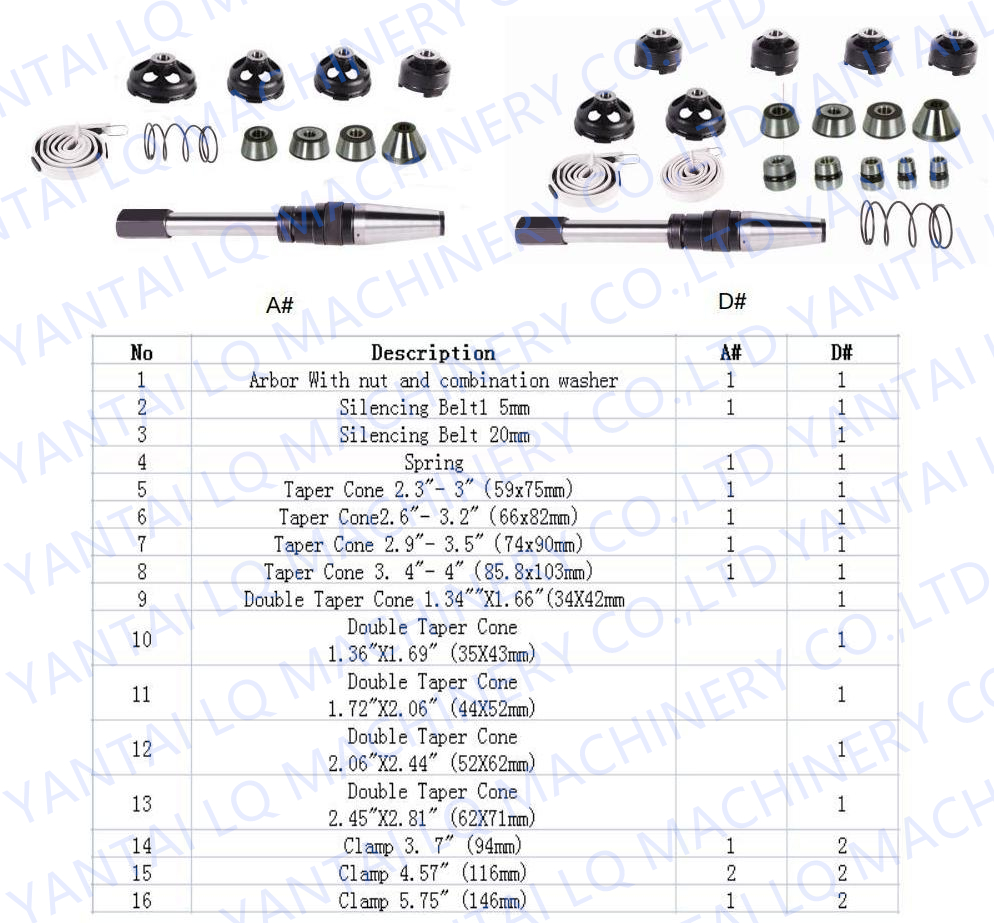

Standard Adapter:
