Technical Parameter
Suitable for wheel rims:14"-62"
Maximum wheel weight: 2000kg
Maximum wheel diameter: 2600mm
Maximum wheel width: 1200mm
Working pressure: 150-180bar
Power supply: 220V/380V/415V
Gearbox motor power: 3.3kW/2.2kW
Hydraulic pump motor power: 2.2kW/1.5kw
Tire edge pressure: 3300kg
Net weight of equipment: 790kg
Product Features

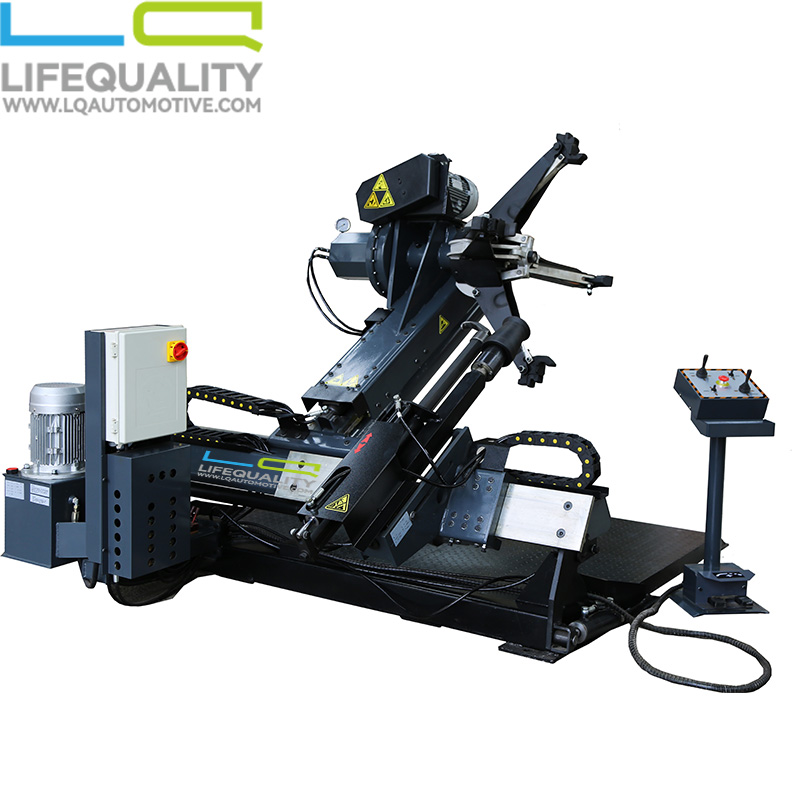

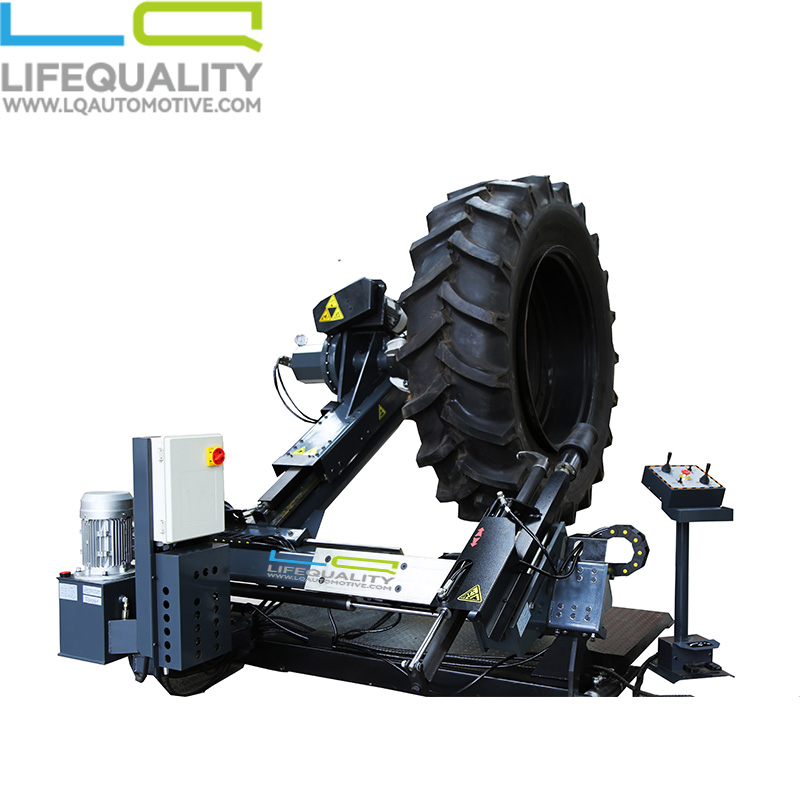

Can disassemble and assemble tires for various trucks, buses, and engineering vehicles.
Scope of application
This product is suitable for disassembling tires with a center hole diameter between 14 and 62 inch.
Performance
1. This product is fully automated. No prying bar for tire disassembly, no damage to the wheel or tire.

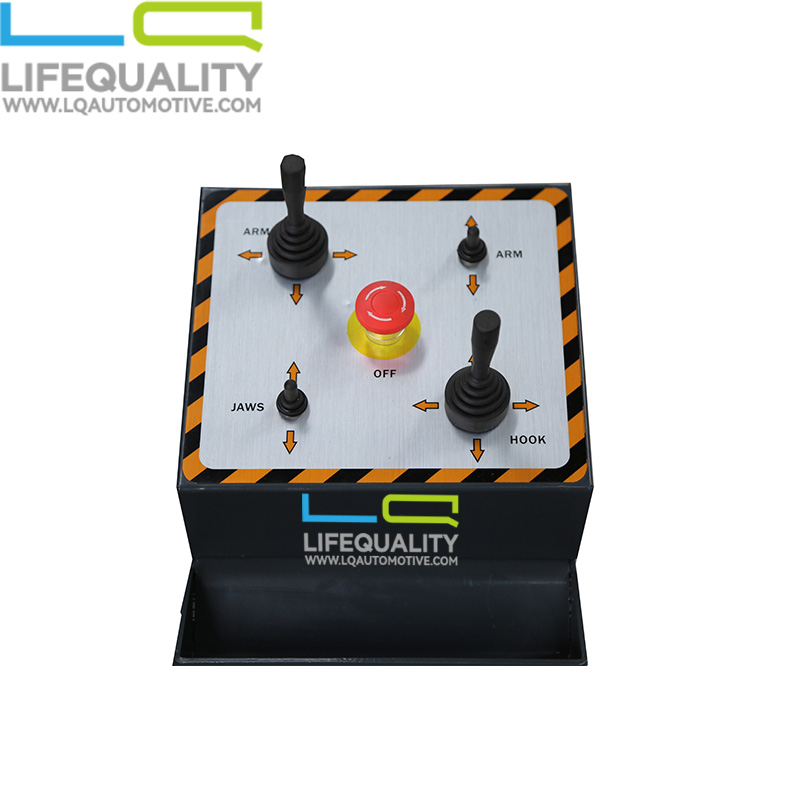

2. Using a movable low-voltage control handle for operation, the control console is lightweight and easy to move.
3. The operating voltage is 24V, safe and stable.
4. Automatic lifting and retraction of the support arm, automatic clamping. The tire dismantling device automatically raises the hook. The pulley automatically moves left and right
5. The tool support, lifting arm, and fixture are all hydraulically driven. Infinite adjustment of clamping force.
6. The standard configuration is a hook pressure wheel, with an optional hook pressure plate.
7. The guide rail adopts an overall grinding process, ensuring the accuracy of the guide rail and making it run more smoothly.
