Technical Parameter
Suitable for wheel rims:14"-42"
Maximum wheel weight:500kg
Maximum wheel diameter:1500mm
Maximum wheel width:780mm
Working pressure: 0-130bar
Power supply: 415V/380V/240V/220V/110V
Hydraulic pump power: 3.0kW
Equipment weight: 560kg
Scope of application
The tires cover all sizes, covering multiple fields such as light trucks, heavy trucks, and small sedan SUVs.
Product Features

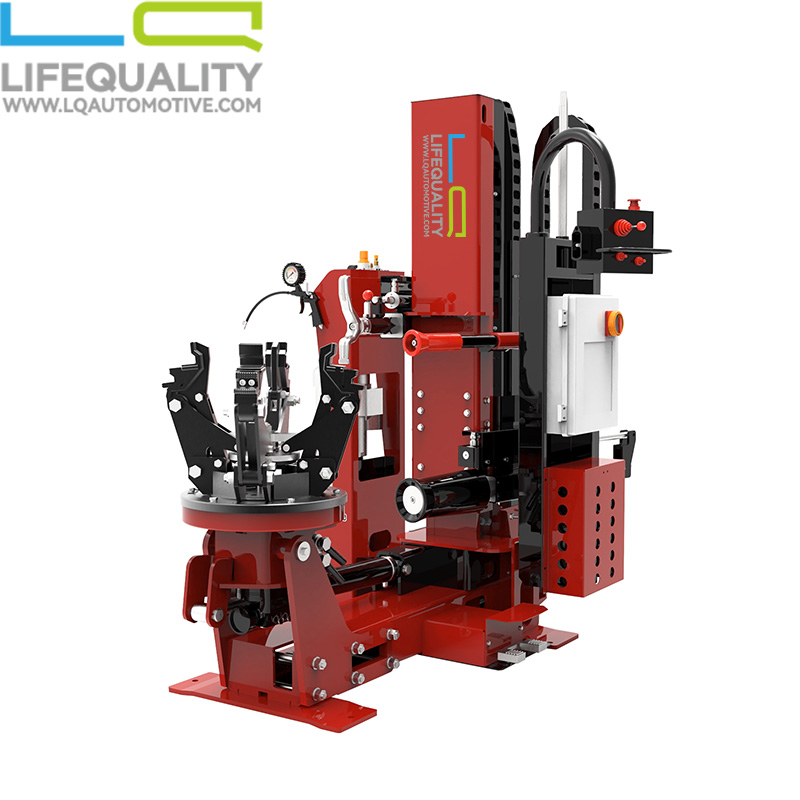

Full tire coverage, universal tire disassembly and assembly machine for large and small cars.
Performance
1. The mechanical transmission part adopts a hydraulic motor and oil pipe thickening scheme, which makes the hydraulic motor rotate faster, have stronger power, and significantly improve work efficiency.
2. The gearbox adopts a closed structure, which can effectively improve the service life of the gears and prevent wear caused by impurities entering the gearbox. Its service life can be increased by several times.
3. Using both hands and feet, tire removal is more coordinated and efficient, returning to traditional tire removal methods.
4. The tire pressure wheel can also be freely adjusted during operation and has a ruler for positioning, which can be positioned according to the edge of the tire to avoid readjusting the position when the tire is loaded again.
5. The tire removal head can be used for both tire loading and tire removal, breaking the traditional tire removal concept.
