Technical Parameter
Suitable for wheel rims:14"-46"（expand to 56"）
Maximum wheel weight:1500kg
Maximum wheel diameter:2300mm
Maximum wheel width：1065mm
Working pressure：0-130bar
Power supply： 380V/220V/110V
Gearbox motor power：1.3kW/1.5kW
Hydraulic pump motor power：1.5kw
Net weight of equipment：770kg
Product Features

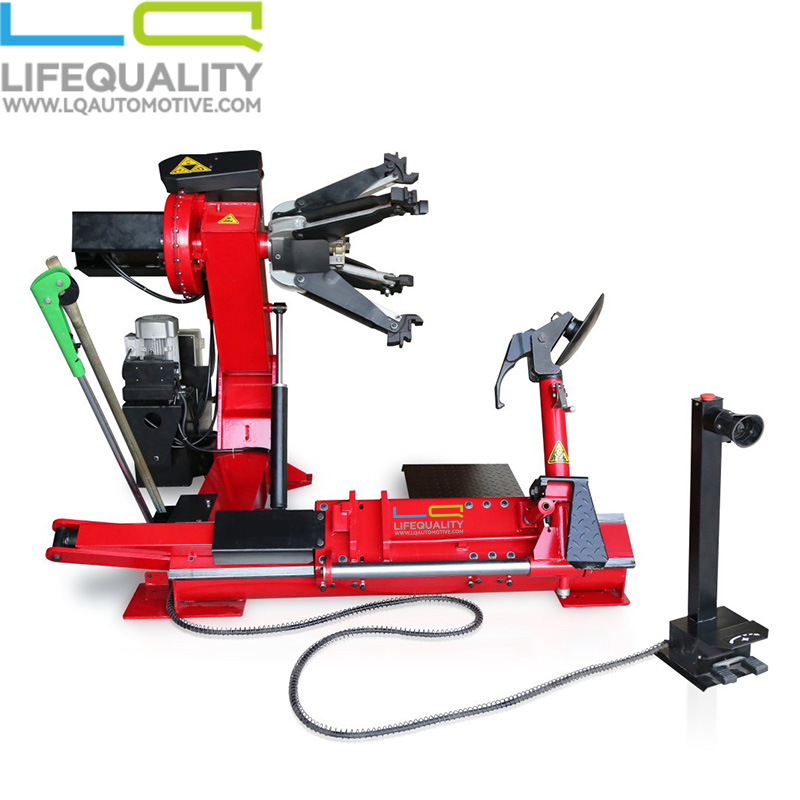

Can disassemble and assemble tires for various trucks, buses, and engineering vehicles.
Scope of application
This product is suitable for disassembling tires with a center hole diameter between 14 and 46 inch(maximum expandable to 56 inch).
Performance
1.Using a movable low-voltage control handle for operation, the control console is lightweight and easy to move.
2.The operating voltage is 24V, safe and stable.
3.The universal assembly arm is equipped with a swinging assembly disc and assembly hook.
4.The tool support, lifting arm, and fixture are all hydraulically driven.
5.Infinite adjustment of clamping force.
6.The guide rail adopts an overall welding post processing process to eliminate defects caused by welding deformation, ensure the accuracy of the guide rail, and make the operation more stable.
