Technical Parameter
Suitable for wheel rims:14"-28"
Maximum wheel diameter:1600mm
Maximum wheel width:780mm
Working pressure:0-130bar
Power supply:380V/220V/110V
Power: 1.5kW
Hydraulic pump power: 1.5kW
Equipment weight: 570kg
Product Features
Can disassemble various trucks and customer tires.
Scope of application
This product is suitable for dismantling tires with a center hole diameter of 14 "-28"
Performance
1. Using a movable low-voltage control handle for operation, the control console is lightweight and easy to move.
2. The operating voltage is 24V, safe and stable.
3. The universal assembly arm is equipped with a swinging assembly disc and assembly hook.
4. The tool support, lifting arm, and fixture are all hydraulically driven.
5. Infinite adjustment of clamping force.
6. The guide rail adopts an overall welding post processing process to eliminate defects caused by welding deformation, ensure the accuracy of the guide rail, and make the movement more stable.
Certificate

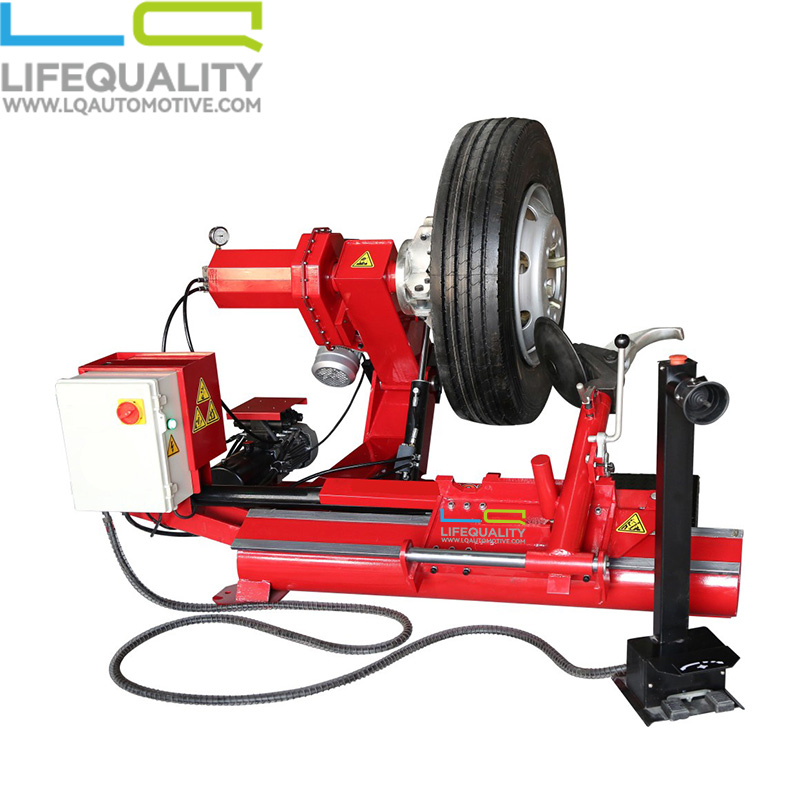

LQTC-2400 truck tire changer 14"-28" Manufactured under an ISO 9001:2015 certified quality system. The design and manufacturing process complies with relevant machinery safety standards, including ISO 12100."
