Technical Parameter
Inside Clamp:8"-18"
Maximum wheel diameter: 960mm
Maximum wheel width: 3"-12"
Working pressure:8-10bar
Power supply: 415V-380V-240V-220V-110V
Power: 0.75kw/1.1kw
Equipment weight: 160kg
Scope of application

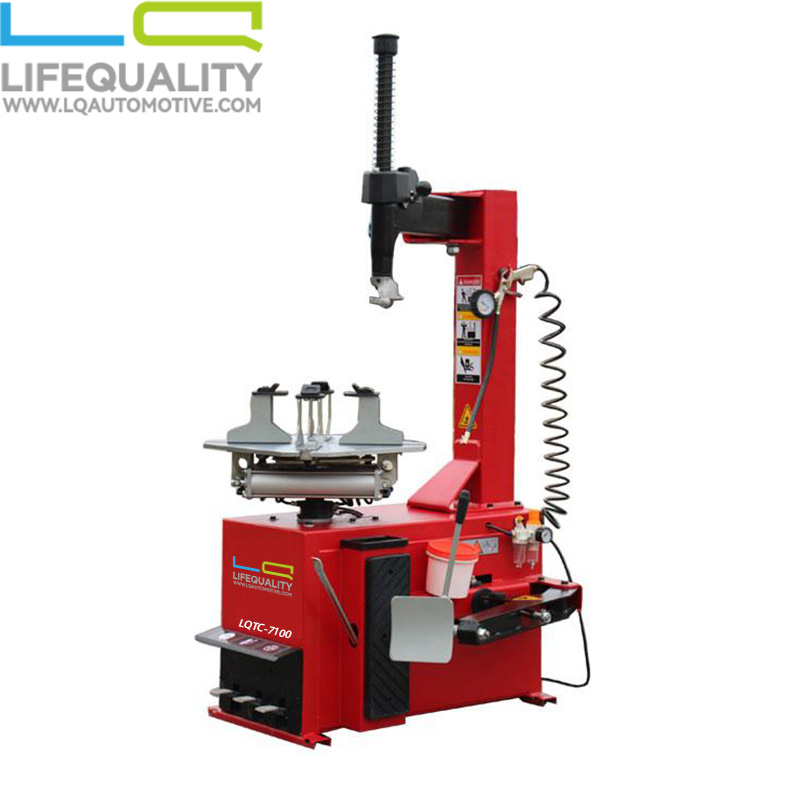

This product is suitable for semi-automatic disassembly and assembly of various motorcycle tires (rims 8 "-18").
Product Features
Using semi-automatic lateral swing arm for tire disassembly and assembly.
Performance
1.Motorcycle dedicated tire disassembly and assembly machine.
2. Change the range of clamping wheels by adjusting the position of the small boat.
3. The automatic centering four claw motion structure on the turntable has synchronous performance and self centering when clamping from the outside.

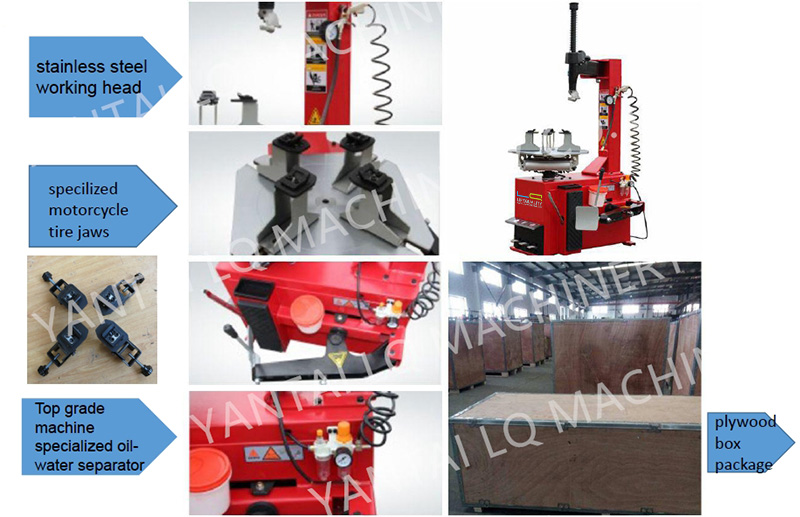

4. The working head is plated with hard chromium on the surface after high-frequency quenching, ensuring strength, toughness, and wear resistance.
5. The working turntable has synchronous centering and fine adjustment functions, making tire disassembly and assembly smoother.
6. When the machine is running, the noise is low.
7. Tools such as disassembly and assembly heads, claws, crowbars, and tire pressure shovels that come into contact with tires are equipped with protective covers and pads to ensure that they do not damage the wheels.
8. The body is dignified, the board is thick, and the rigidity is super strong.
