Technical parameters
Rim clamp from outside：10"-22"
Rim clamp from inside：12"-24"
Max. wheel diameter：1040 mm
Tire width：3"-15"
Working pressure：8~10bar
Voltage：380V/220V/110V
Power：0.75kw/1.1kw
Machine weight：195kg
Application range
Applicable for changing car tyres whose rim diameter is between 10"-24".
Product features

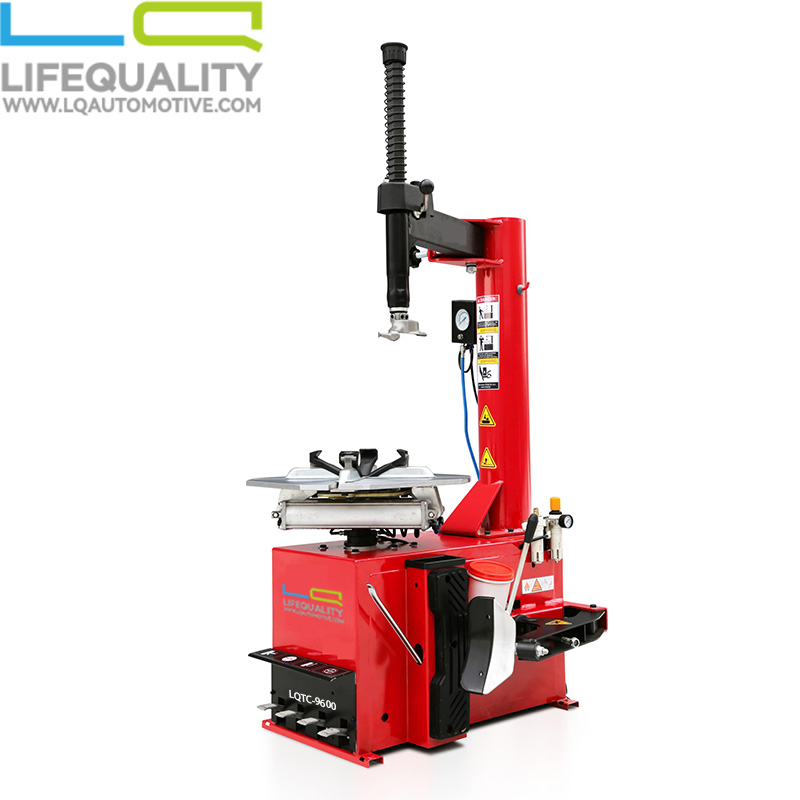

Adopting semi-automatic lateral swinging arm to change tyres.
Machine functions
1.Change the range of clamping wheels by adjusting the position of the small boat.
2. The automatic centering four claw motion structure on the turntable is a connecting rod structure, which has synchronous performance and self centering when clamping from the outside to the inside.
3. The design of the machine structure for one-time forming and processing of mobile card seats ensures that they are not easily deformed.
4. The working head is plated with hard chromium on the surface after high-frequency quenching, ensuring strength, toughness, and wear resistance.
5. The working turntable has synchronous centering and fine adjustment functions, making tire disassembly and assembly smoother.
6. When the machine is running, the noise is low.
7. Tools such as disassembly and assembly heads, claws, crowbars, and tire pressure shovels that come into contact with tires are equipped with protective covers and pads to ensure that they do not damage the wheels.
8. The body is dignified, the board is thick, and the rigidity is super strong.
