Technical parameters
Rim clamp from outside：10"-22"
Rim clamp from inside：12"-24"
Max. wheel diameter：1040 mm
Tire width：3"-15"
Working pressure：8~10bar
Voltage：415V/380V/240V/220V/110V
Power：0.75kw/1.1kw
Machine net weight: 225kg
Gross weight: 255kg
Application range
Applicable for changing and inflating car tyres whose rim diameter is between 10"-24".
Product features

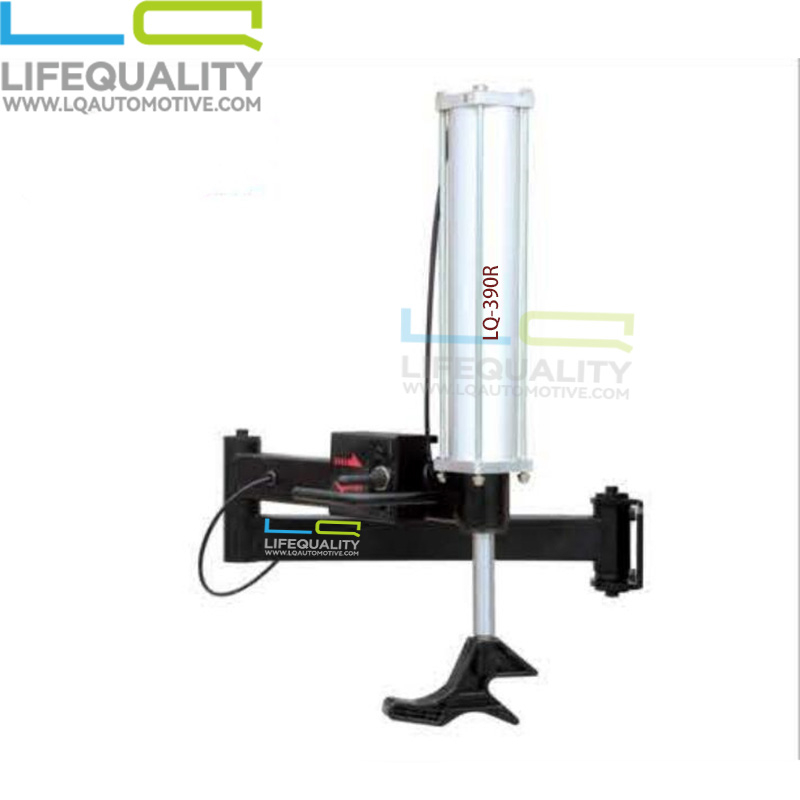

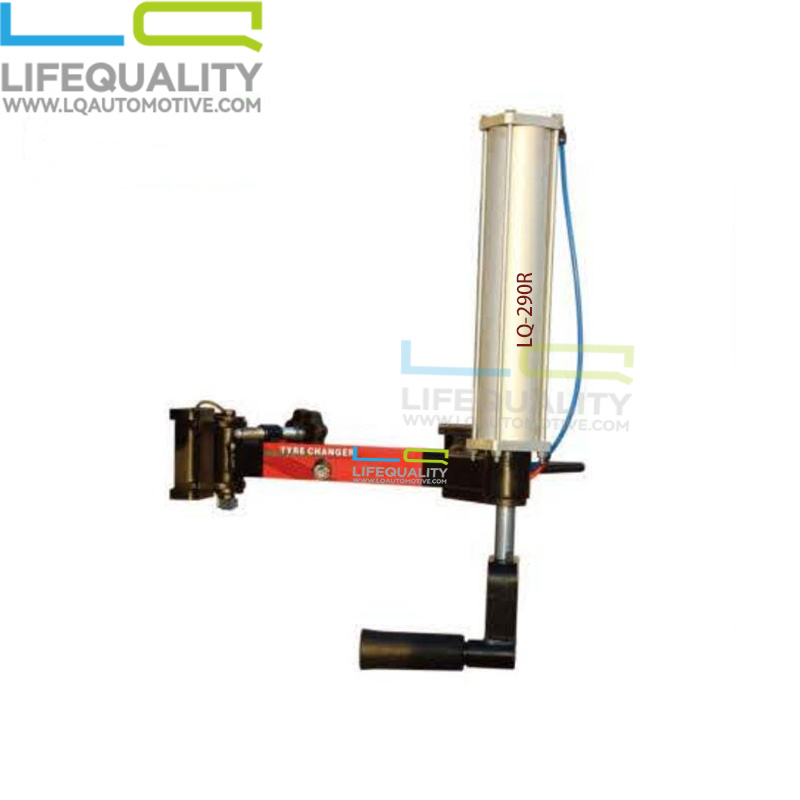

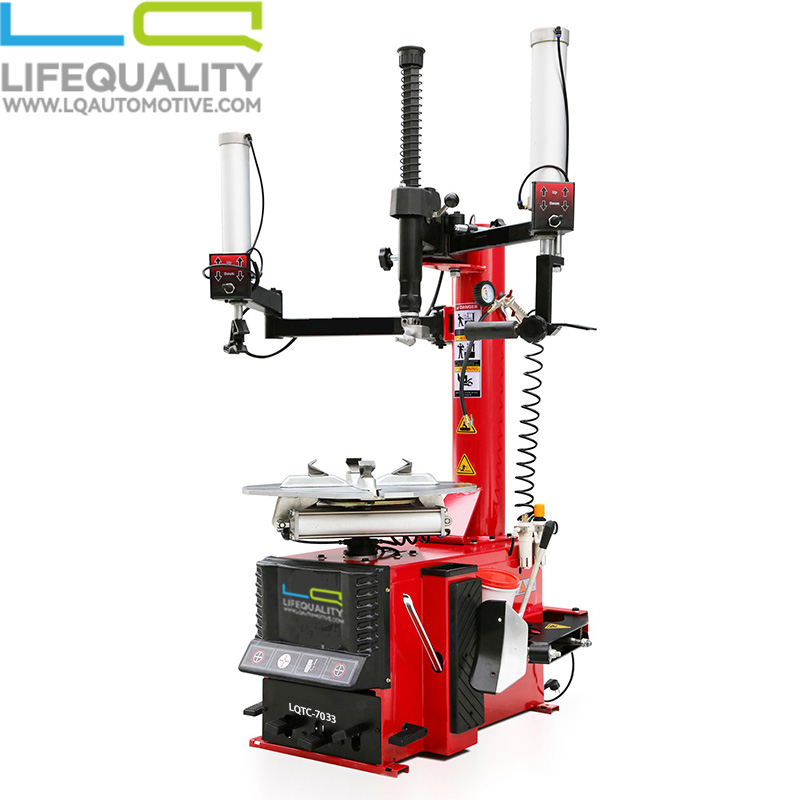

This model is expansion for LQTC-7000. Adopting semi-automatic lateral swinging arm. Add right and left helper to change tyres. The assistant arm can both press tires and lift tires. It is small , practical and easy to operate.
Machine functions
1.Central pressing tyre function makes jaws grip rim fastly.
2.Adjusting mobile slider to be suitable for different rim ranges.
3.The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
4.The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
5.The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
6.the round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
7.The tools touching rim directly like changing working head,jaws,crwobar and spade are all equipped with protector,these protectors ensure no hurt to the rim.
8.It has good personal presentation,thick steel plate and super strong rigidness.
