TECHNICAL PARAMETERS
Rim clamping from outside: 10"-19"
Rim clamping from inside: 12"-21"
Max. Wheel diameter: 960mm
Tire width: 3"-15"
Working pressure : 8-10bar
Voltage: 415V/380V/220V/110V
Power: 0.75kW/1.1kW
Machine weight: 170kg
Application range
Applicable for changing car tyres whose rim diameter is between 10"-21".
Product features

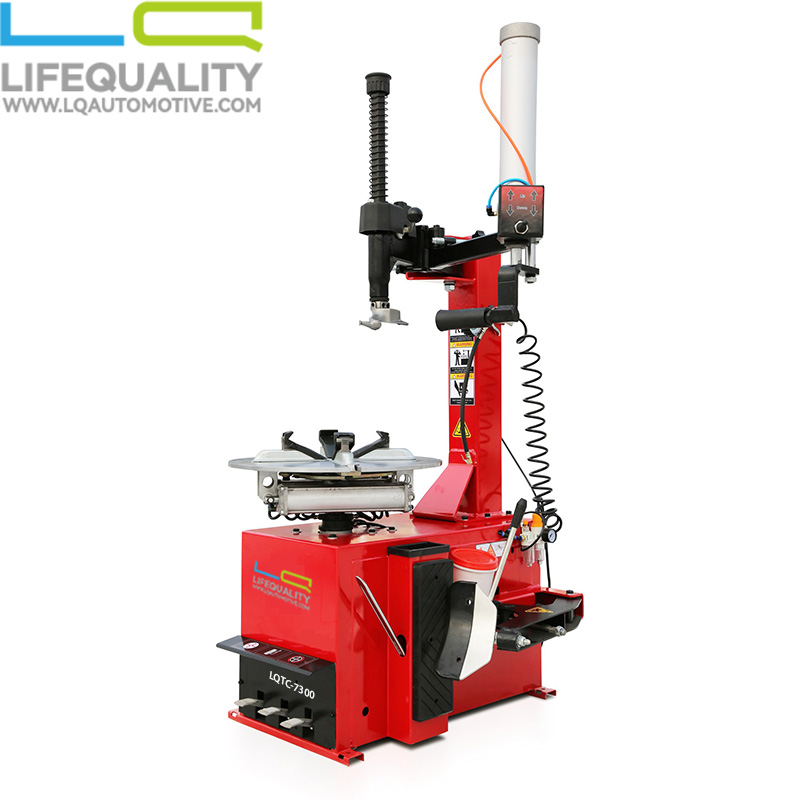

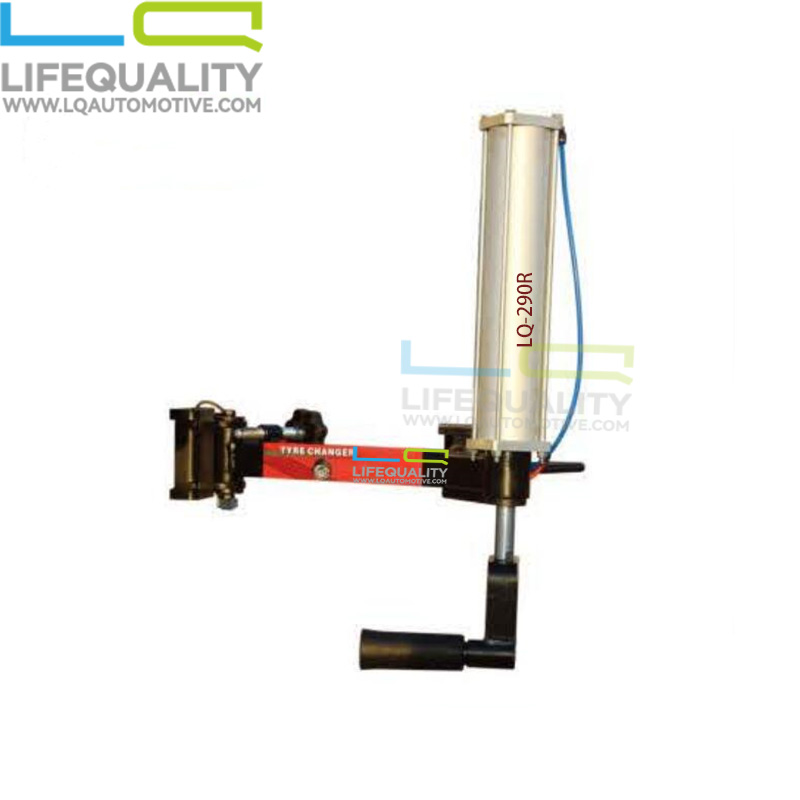

This model is expansion for LQTC-7200. Adopting semi-automatic lateral swinging arm and right helper arm to change tyres. Helper arm LQ-290R with double function, it can both press tires and lift tires. It is small, practical and easy to operate.
Machine functions
1. Adjusting mobile slider to be suitable for different rim ranges.
2. The motion structure of the four automatic alignment gripping jaws on the turn plate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
3. The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
4. The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
5. The round working turn plate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
6. When the machine is running, the noise is low.
7. The tools touching rim directly like changing working head, jaws, crowbar and spade are all equipped with protector, these protectors ensure no hurt to the rim.
8. It has good personal presentation, thick steel plate and super strong rigidness.
Optional parts
The machine can choose 24 inch working plate, then it can work for 10"-24".
