Product Details

Technical Parameter

External wheel rim:10"-19"

Inside Clamp: 12"-21"

Maximum wheel diameter: 960mm

Maximum wheel width: 3"-15"

Working pressure: 8-10bar

Power supply: 380V/220V/110V

Power: 0.75kw/1.1kw

Equipment weight: 160kg


Scope of application

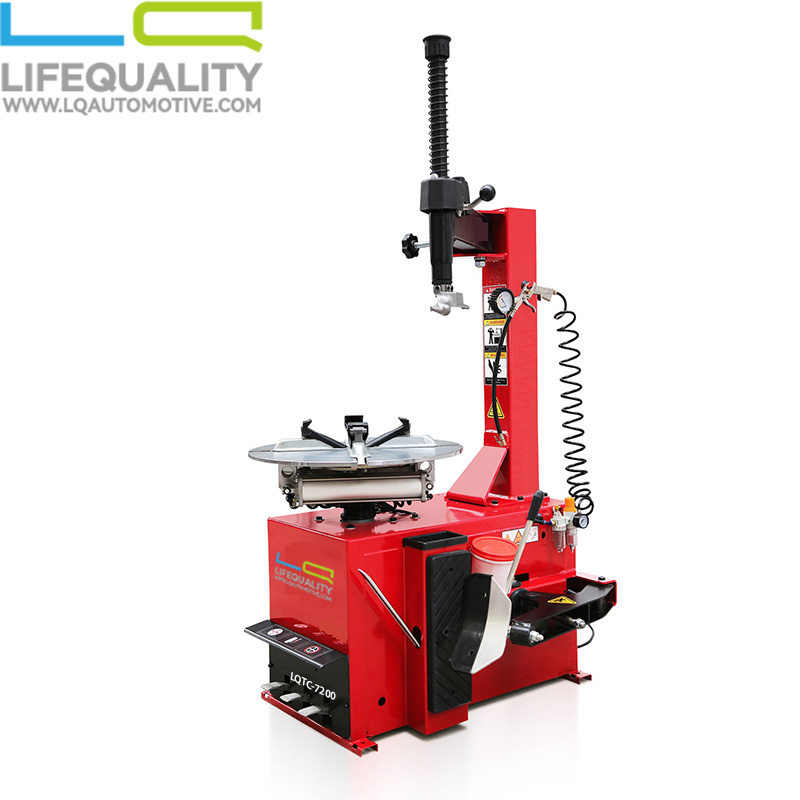

This product is suitable for semi-automatic disassembly and assembly of tires with a rim diameter of 10 "-21" in various small and medium-sized cars.

It also can expand to 24 inch.


Product Features


Using semi-automatic lateral swing arm for tire disassembly and assembly.


Performance


1. Change the range of clamping wheels by adjusting the position of the small boat.

2. The automatic centering four claw motion structure on the turntable has synchronous performance and self centering when clamping from the outside.

3. The working head is plated with hard chromium on the surface after high-frequency quenching, ensuring strength, toughness, and wear resistance.

4. The working turntable has synchronous centering and fine adjustment functions, making tire disassembly and assembly smoother.

5. When the machine is running, the noise is low.

6. Tools such as disassembly and assembly heads, claws, crowbars, and tire pressure shovels that come into contact with tires are equipped with protective covers and pads to ensure that they do not damage the wheels.

7. The body is dignified, the board is thick, and the rigidity is super strong.


Optional Parts


It can choose 24 inch working plate, then the machine can work for 10"-24"

The machine also can add assistant arm. Such as LQ-290R.
