Technical Parameter
External wheel rim: 10"-24"
Inside Clamp: 12"-26"
Maximum wheel diameter104: 0mm
Maximum wheel width：3"-15"
Working pressure：8-10bar
Power supply：380V/220V/110V
Power：1.0kw/1.5kw
Equipment weight 317kg
Scope of application
This product is suitable for the disassembly and assembly of tires with a rim diameter of 10 "-26" for various small and medium-sized cars.
Product Features

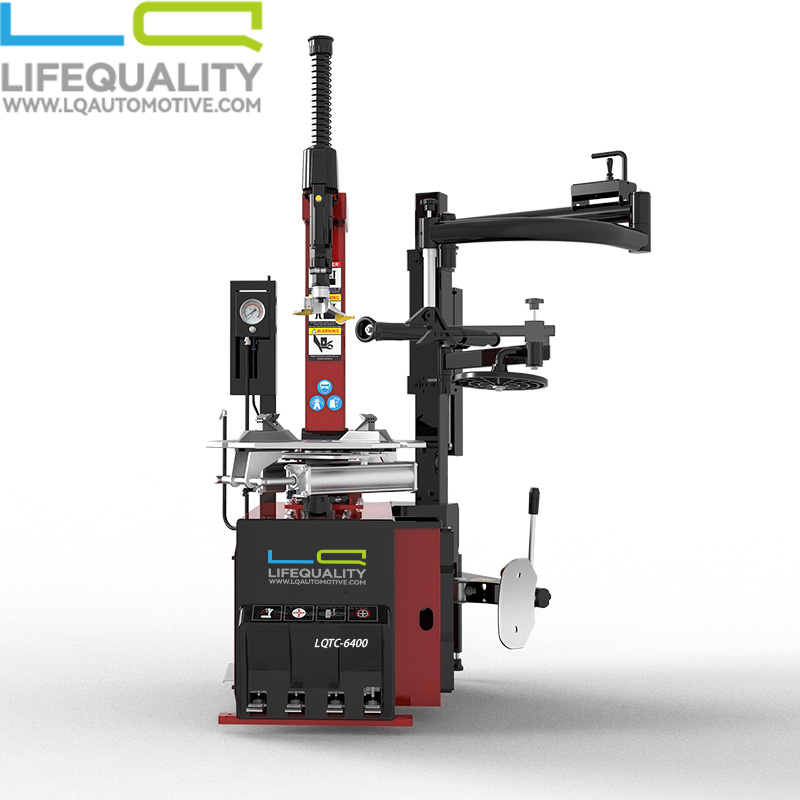

1.This model is a expansion for LQTC-6250. This product is an automatic rear tilting flat tire disassembly and assembly machine, equipped with an automatic swing arm assistance device and a pneumatic locking device.
2. The dimensions of the outer clamp and inner support are adjustable with three shifts of the new large plate clamp claw.
Performance
1. The column is designed with pneumatic tilt back and automatic locking by pushing and pulling.
2. Tire lifting function, easy and fast to operate.
3. The central tire pressing function allows the clamping jaws to quickly clamp the wheel rim.
4. Removable and interchangeable swing arm pressure head with tire pressure positioning function.
5. Change the range of clamping wheels by adjusting the position of the small boat.
6. The automatic centering four claw motion structure on the turntable is a connecting rod structure, which has synchronous performance and self centering when clamping from the outside to the inside.
7. The design of the machine structure for one-time forming and processing of mobile card seats ensures that they are not easily deformed.
8. The working head is plated with hard chromium on the surface after high-frequency quenching, ensuring strength, toughness, and wear resistance.
9. The working turntable has synchronous centering and fine adjustment functions, making tire disassembly and assembly smoother. When the machine is running, the noise is low.
10. Tools such as disassembly and assembly heads, claws, crowbars, and tire pressure shovels that come into contact with tires are equipped with protective covers and pads to ensure that they do not damage the wheels.
11. The new auxiliary arm has a new technology, simple structure and durability.
