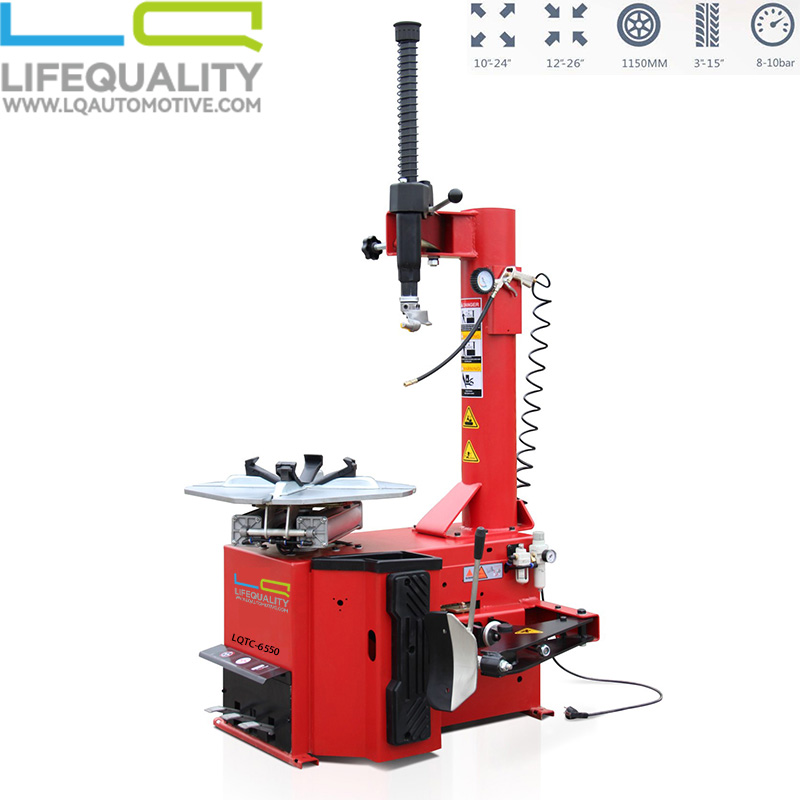

Technical Parameter
Rim clamp from outside :10"-24" (26")
Rim clamp from inside : 12"-26" (28")
Max. wheel diameter:1150 mm
Tire width:3"-15"
Working pressure:8~10bar
Voltage:380V/220V/110V
Power:1.0kw/1.5kw
Machine weight:225kg

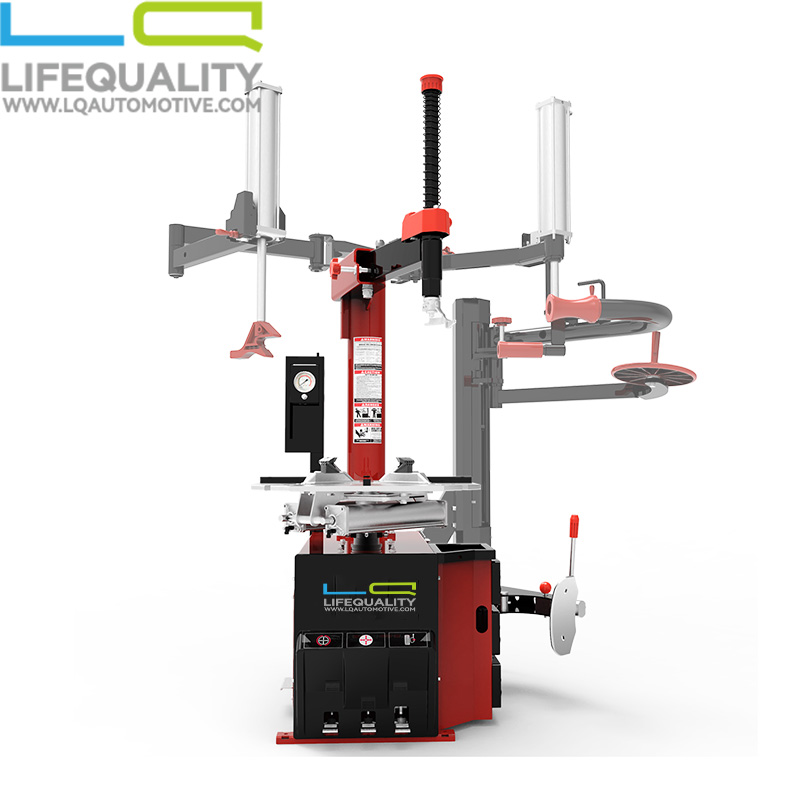

Optional Auxiliary arm:
LQ-290R Auxiliary arm=16kg
LQ-390R Auxiliary arm=20kg
LQ-430R Auxiliary arm=75kg
Scope of application
This product is suitable for semi-automatic disassembly and assembly of tires with a rim diameter of 12 "-28" in various small and medium-sized cars.
Product feature
1. One-time forming and processing of mobile card seats ensures that they are not easily deformed.
2. The working head is plated with hard chromium on the surface after high-frequency quenching, ensuring strength, toughness, and wear resistance.
3. The working turntable has synchronous centering and fine adjustment functions, making tire disassembly and assembly smoother.
4. When the machine is running, the noise is low.
5. Tools such as disassembly and assembly heads, claws, crowbars, and tire pressure shovels that come into contact with tires are equipped with protective covers and pads to ensure that they do not damage the wheels.
6. The body is dignified, the board is thick, and the rigidity is super strong.
