Technical ParameterSuitable for wheel rims:10"-30"Maximum wheel diameter:1250mmSuitable for wheel width:3"-12"Working pressure:8-10barPower supply:110V/220V/380VGearbox motor power:1.1kW/1.5kWHydraulic pump motor power:0.75kW/1.1kWNet weight:330kgGross weight:370kg&
Technical Parameter
Suitable for wheel rims:10"-30"
Maximum wheel diameter:1250mm
Suitable for wheel width:3"-12"
Working pressure:8-10bar
Power supply:110V/220V/380V
Gearbox motor power:1.1kW/1.5kW
Hydraulic pump motor power:0.75kW/1.1kW
Net weight:330kg
Gross weight:370kg
LQ-390R Auxiliary arm:20kg
Package size :1470 x900x1550mm (L,W,H)
Product Introduction
1.This product is suitable for pry free disassembly and assembly of tires for various low, medium, and high-end sedans, SUVs, and special vehicles.
2. Th integer number series is designed in a family style, and the "center pillar integrated structure" has been widely praised both domestically and internationally since its birth in 2011. The hook wheel synchronization is the industry's first, with a simple structure, zero failure rate, reasonable angle, wide disassembly and assembly range. It can effectively complete the efficient disassembly and assembly of complex and difficult to disassemble tires in a single plane, which is most ergonomic and can achieve human-machine integration and many other advantages. It is the simplest solution for the structure of the pry free disassembly and assembly machine, and this structure is also an independent intellectual property and a national invention patent!
Product Features

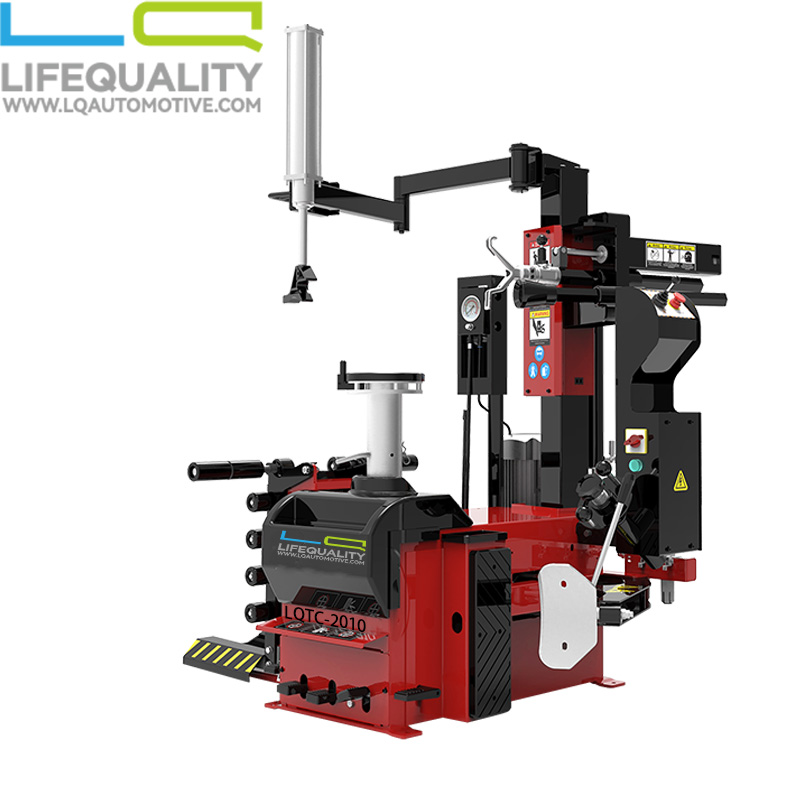

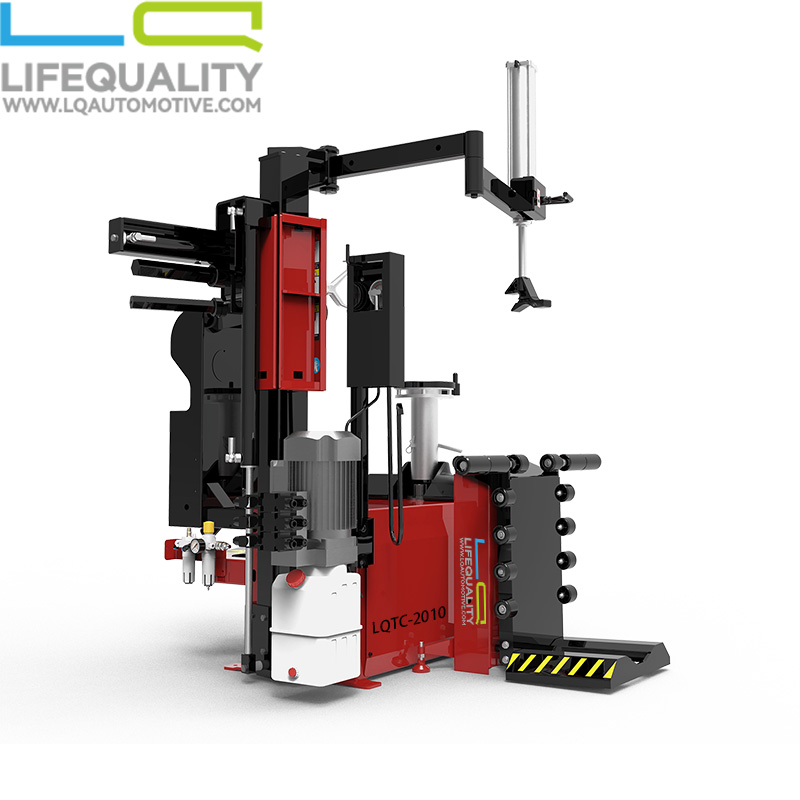

1. LQTC-2010 independent lifting vehicle is an expanded product of LQTC-2000, which not only meets the pry free function, but also improves customer experience and overall disassembly efficiency.
2. Structural advantages, seemingly simple but actually very clever, can be effectively completed in a single plane. The efficient disassembly and assembly of complex and difficult to disassemble tires is the most ergonomic, combined with hydraulic systems, making users love operation.
3. An excellent electronic control system that automatically cuts off power when stopped and automatically starts when resumed, achieving a more user-friendly approach while also taking into account many characteristics such as safety, energy conservation, stability, and efficiency.
4. The hydraulic operating system consists of two parts: a cross switch and a left and right control switch, paired with a central pillar integrated system, making the operation of this controlled machine appear effortless.
5. The disassembly head needs to be modified over a long period of time, and the hydraulic system can ensure that the disassembly head is stable and fixed at a single point, achieving the goal of not damaging the tire or wheel hub.
