Technical parameters
Rim clamp from outside：10"-24"
Rim clamp from inside：12"-26"
Max. wheel diameter：1040 mm
Tire width：3"-15"
Working pressure：8~10bar
Voltage：415V/380V/240V/220V/110V
Power：1.0kw/1.5kw
Machine net weight：274kg
Gross weight: 317kg
Application range
Applicable for changing and inflating car tyres whose rim diameter is between 10"-26”.
Remarks:the marked rim diameter size is the actual size of opening and gripping of new type jaws.
Product features

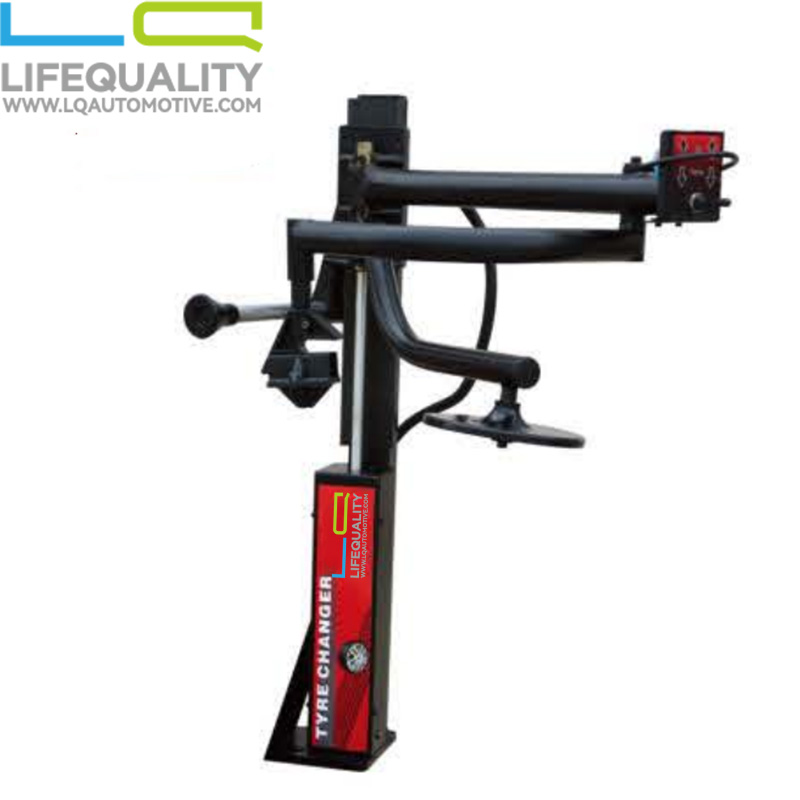

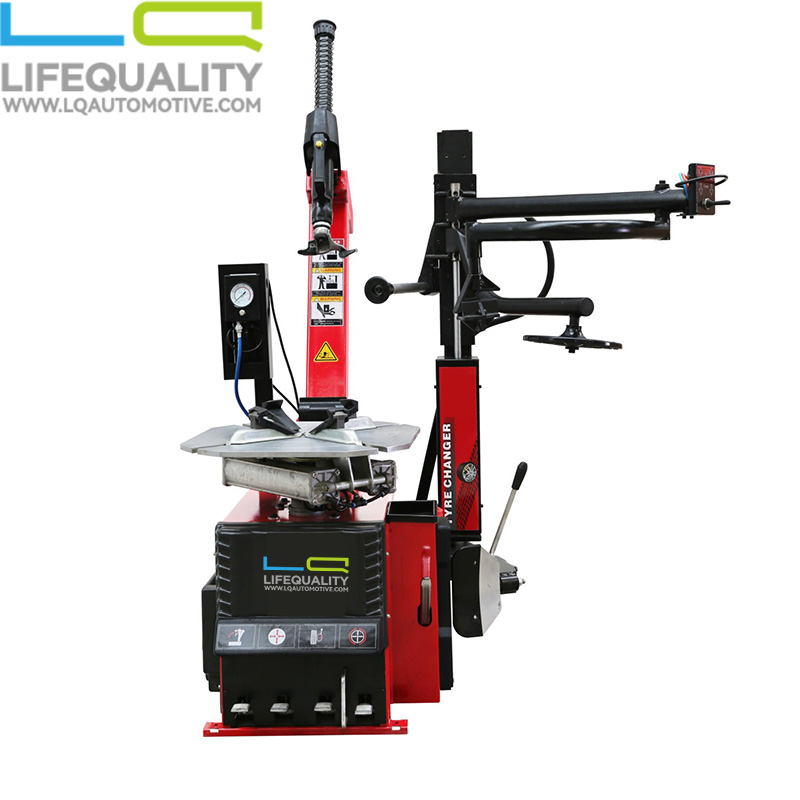

This model is an expansion for LQTC-6250. This tyre changer can go backwards automatically and it is equipped with assisting device of automatic swinging arm，penumatical locking device and automaitc dismounting hook device.
Machine functions
1. The column going backwards penumatically,penumatic push-pull locking automaically.
2. Lifting tyre up function makes operation easy and quick.
3. Central pressing tyre function makes jaws grip rim fastly.
4. Replaceable swinging arm pressing head can fix position automatically.
5. Adjusting mobile slider to be suitable for different rim ranges.
6. The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
7. The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
8. The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
9. The round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
10. The tools touching rim directly like changing working head,jaws,crwobar and spade are all equipped with protector,these protectors ensure no hurt to the rim.
11. It has good personal presentation,thick steel plate and super strong rigidness.and super strong rigidness.
