Technical Parameter
Suitable for wheel rims：10"-30"
Maximum wheel diameter：1250mm
Suitable for wheel width：3"-12"
Working pressure：8-10bar
Power supply：110V/220V/380V
Gearbox motor power：1.1kW/1.5kW
Hydraulic pump motor power：0.75kW/1.1kW
Machine net weight：330kg
Gross weight：370kg
Package size:1350x900x1580mm(L,W,H)
Product Introduction
1.This product is suitable for pry free disassembly and assembly of tires for various low, medium, and high-end sedans, SUVs, and special vehicles.
2.The integer number series is designed in a family style, and the "center pillar integrated structure" has been widely praised both domestically and internationally since its birth in 2011. The hook wheel synchronization is the industry's first, with a simple structure, zero failure rate, reasonable angle, wide disassembly and assembly range. It can effectively complete the efficient disassembly and assembly of complex and difficult to disassemble tires in a single plane, which is most ergonomic and can achieve human-machine integration and many other advantages. It is the simplest solution for the structure of the pry free disassembly and assembly machine, and this structure is also an independent intellectual property and a national invention patent!
Product Features

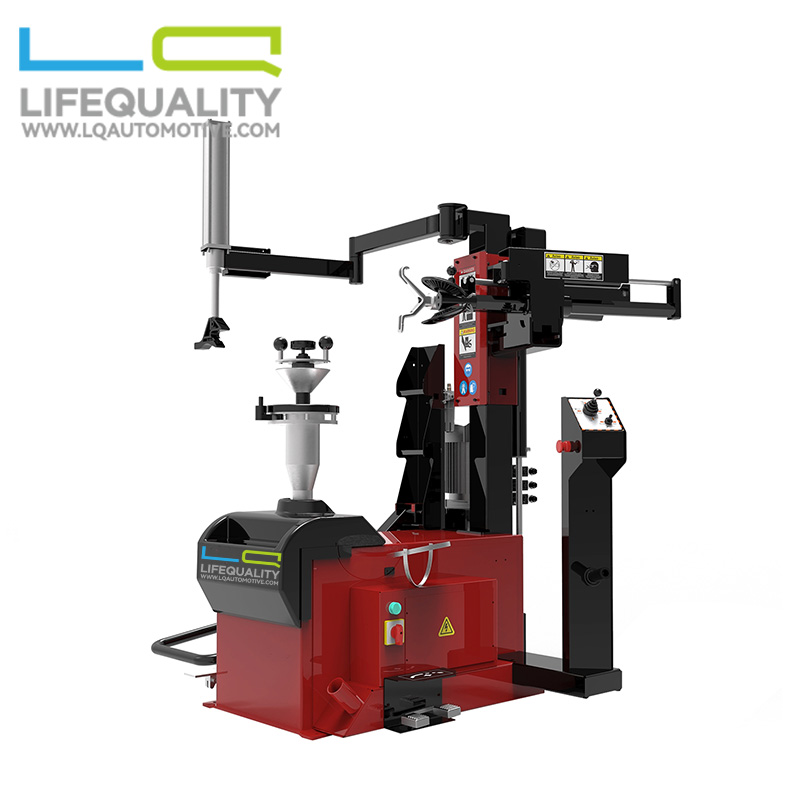

1.The LQTC-5000 is a model in integer number series pry free disassembly and assembly machine that adopts a double butterfly wheel mechanism. The disc wheel adopts hydraulic control for forward and backward lifting and lowering actions, allowing customers to adjust the position of the disc wheel at any time, greatly increasing the convenience of disassembly and assembly. The hydraulic cooperation with the disc wheel rolling tires greatly improves the efficiency of disassembly and assembly, which is unparalleled in similar products.
2. Structural advantages, seemingly simple but actually very clever, can be effectively completed in a single plane. The efficient disassembly and assembly of complex and difficult to disassemble tires is the most ergonomic, combined with hydraulic systems, making users love operation.
3. An excellent electronic control system that automatically cuts off power when stopped and automatically starts when resumed, achieving a more user-friendly approach while also taking into account many characteristics such as safety, energy conservation, stability, and efficiency.
4. The hydraulic operating system consists of two parts: a cross switch and a left and right control switch, paired with a central pillar integrated system, making the operation of this controlled machine appear effortless.
5. The disassembly head needs to be modified over a long period of time, and the hydraulic system can ensure that the disassembly head is stable and fixed at a single point, achieving the goal of not damaging the tire or wheel hub.
6. Optional servo motor, continuously variable speed motor speed can be freely adjusted from slow to fast, further improving the experience and efficiency of disassemblers.
