Technical parameters:
Rim clamp from outside：10"-22"
Rim clamp from inside：12"-24"
Max. wheel diameter：1040 mm
Tire width：3"-15"
Working pressure：8~10bar
Voltage：380V/220V/110V
Power：0.75kw/1.1kw
Machine net weight：266kg
Gross weight: 312kg
Application range:
Applicable for changing and inflating car tyres whose rim diameter is between 10"-24"
Product features:

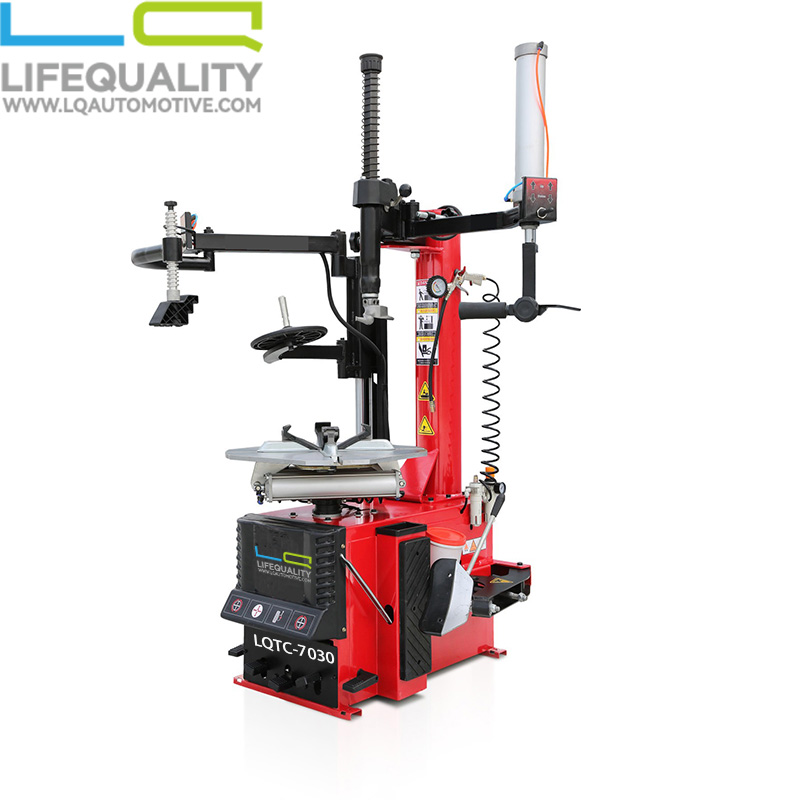

This model is expandition for LQTC-7000. Adopting semi-automatic lateral swinging arm and two-sides helper to change tyres.
Machine functions:
1. Adjusting mobile slider to be suitable for different rim ranges.
2. The motion structure of the four automatic alignment gripping jaws on the turn plate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
3. The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
4. The round working turn plate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
5. The tools touching rim directly like changing working head, jaws, crowbar and spade are all equipped with protector, these protectors ensure no hurt to the rim.
6. When the machine is running, the noise is low.
7. It has good personal presentation, thick steel plate and super strong rigidness.
