Technical Parameter
External wheel rim 10"-24"
Inside Clamp 12"-26"
Maximum wheel diameter 1200mm
Maximum wheel width 3"-20"
Working pressure 8-10bar
Power supply 380V/220V/110V
Power 1.0kw/1.5kw
Equipment weight
machine body=330kg
Air blast tank=15kg
Scope of application
This product is suitable for automatic disassembly and assembly of tires with a rim diameter of 10 "-26" for various small and medium-sized cars.
Product Features

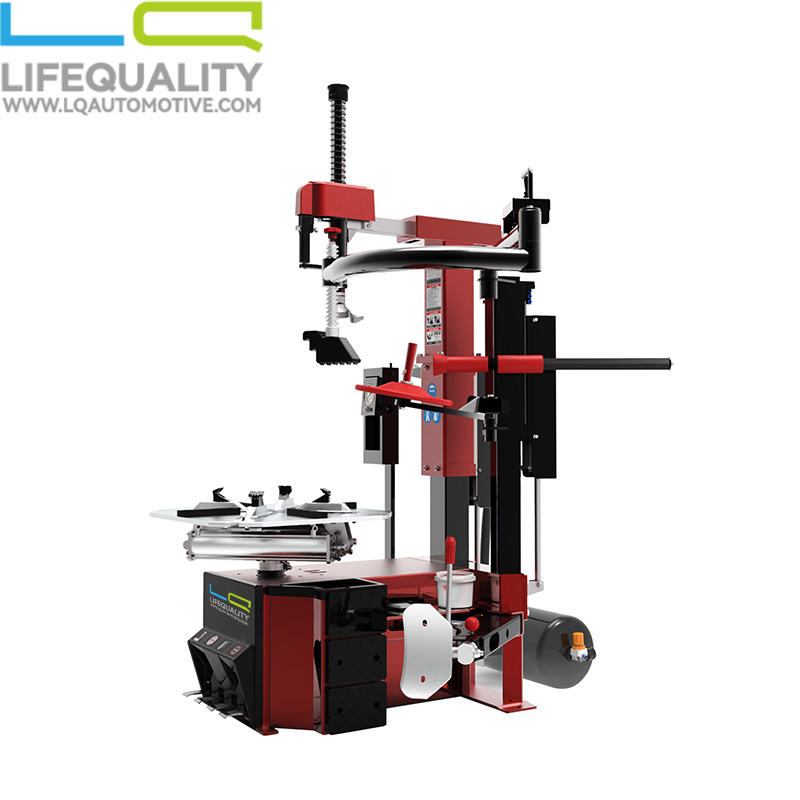

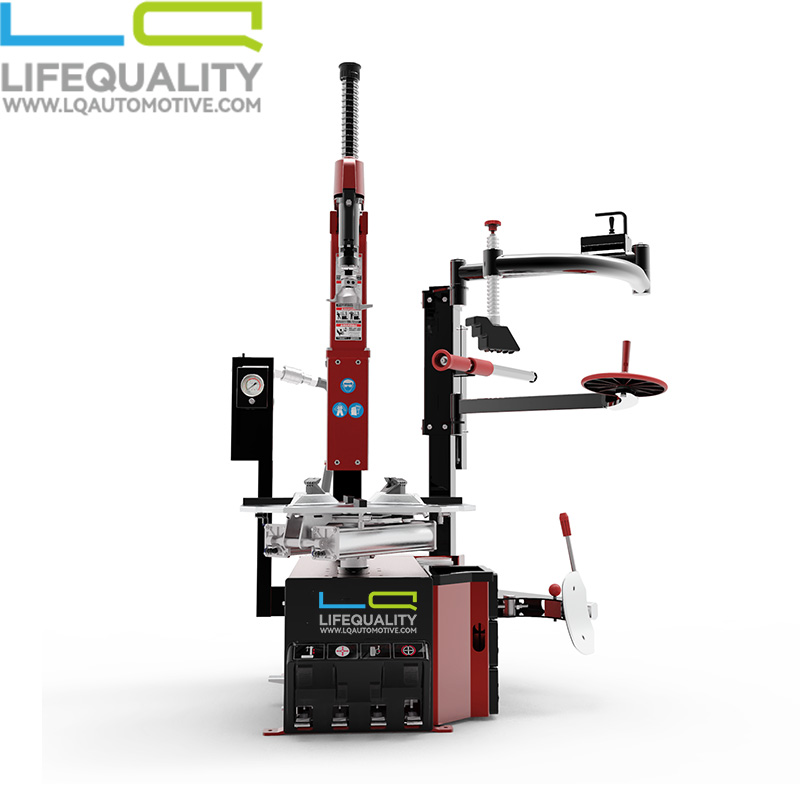

1.This product is a center pillar vertical tire disassembly and assembly machine, covering a wide range of tire types, including light trucks, and can be used in cars, with very high disassembly and assembly efficiency.
2. The dimensions of the outer clamp and inner support are the actual dimensions of the new type large plate clamp claw for opening and clamping.
Performance
1.The vertical lifting system of the center pillar has high strength and small deformation.
2.Foot control for vertical lifting is more ergonomic.
3.The central tire pressing function allows the clamping jaws to quickly clamp the wheel rim.
4.The automatic centering four claw motion structure on the turntable is a connecting rod structure, which has synchronous performance and self centering when clamping from the outside to the inside.
5.The design of the machine structure for one-time forming and processing of mobile card seats ensures that they are not easily deformed.
6. The working head is plated with hard chromium on the surface after high-frequency quenching, ensuring strength, toughness, and wear resistance.
7. The working turntable has synchronous centering and fine adjustment functions, making tire disassembly and assembly smoother. When the machine is running, the noise is low.
8. Tools such as disassembly and assembly heads, claws, crowbars, and tire pressure shovels that come into contact with tires are equipped with protective covers and pads to ensure that they do not damage the wheels.
9. The body is dignified, the board is thick, and the leather is durable.
