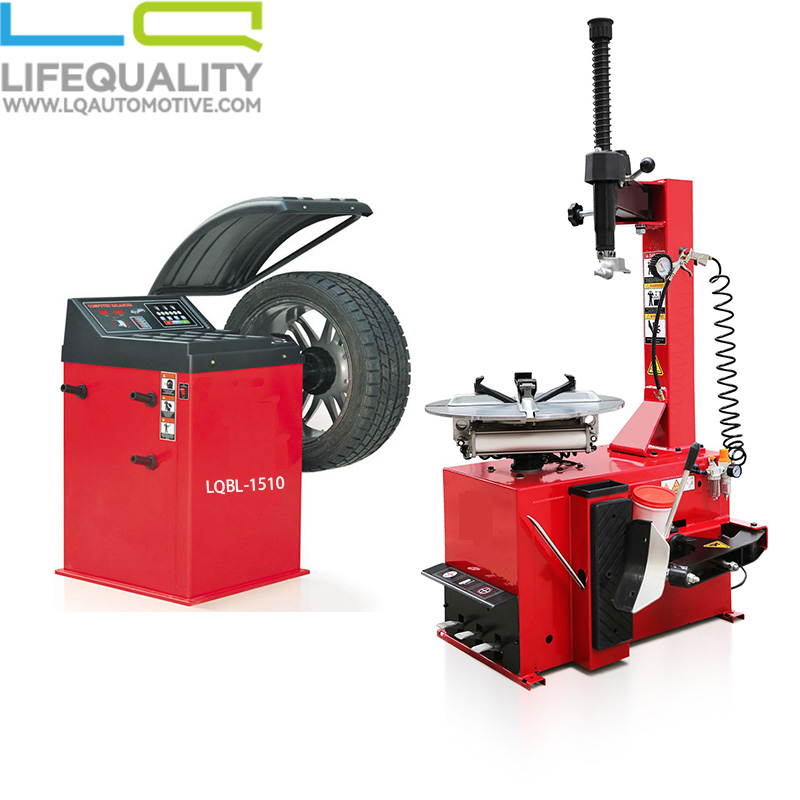

TYRE CHANGER LQTC-7200
Technical Parameter
External wheel rim:10"-19"
Inside Clamp: 12"-21"
Maximum wheel diameter: 960mm
Maximum wheel width: 3"-15"
Working pressure: 8-10bar
Power supply: 380V/220V/110V
Power: 0.75kw/1.1kw
Equipment weight: 160kg
Scope of application
This product is suitable for semi-automatic disassembly and assembly of tires with a rim diameter of 10 "-21" in various small and medium-sized cars.
It also can expand to 24 inch.
Product Features
Using semi-automatic lateral swing arm for tire disassembly and assembly.
Performance
1. Change the range of clamping wheels by adjusting the position of the small boat.
2. The automatic centering four claw motion structure on the turntable has synchronous performance and self centering when clamping from the outside.
3. The working head is plated with hard chromium on the surface after high-frequency quenching, ensuring strength, toughness, and wear resistance.
4. The working turntable has synchronous centering and fine adjustment functions, making tire disassembly and assembly smoother.
5. When the machine is running, the noise is low.
6. Tools such as disassembly and assembly heads, claws, crowbars, and tire pressure shovels that come into contact with tires are equipped with protective covers and pads to ensure that they do not damage the wheels.
7. The body is dignified, the board is thick, and the rigidity is super strong.
Optional Parts
It can choose 24 inch working plate, then the machine can work for 10"-24"
The machine also can add assistant arm. Such as LQ-290R.
WHEEL BALANCER LQBL-1510
Technical Parameter
Rim diameter：10"-24"
Maximum wheel diameter：1000mm
Rim width：1.5"-16"
Maximum wheel weight：70kg
Speed：200r/min
Precision：±1g
Motor parameters：110V/220V /250W
Equipment net weight: 95kg
Gross weight:120kg
Application range
This product makes fine adjustment for tyres of various light vehicles.
Machine functions
1.It can realize automatic dynamic balance ,static balance and aluminum alloy rim balance.
2.Advanced pressure sensor,pressure datas show high precision.
3.The keyboard is resistant to scratch ensuring its long service life.
4.New type of ruler can be used for you maximum 24 inch rim.
5.Its traditional design makes it simple to learn, convenient to use and easy to solve aftersale problems.
6.The protective cover is standard configration.
