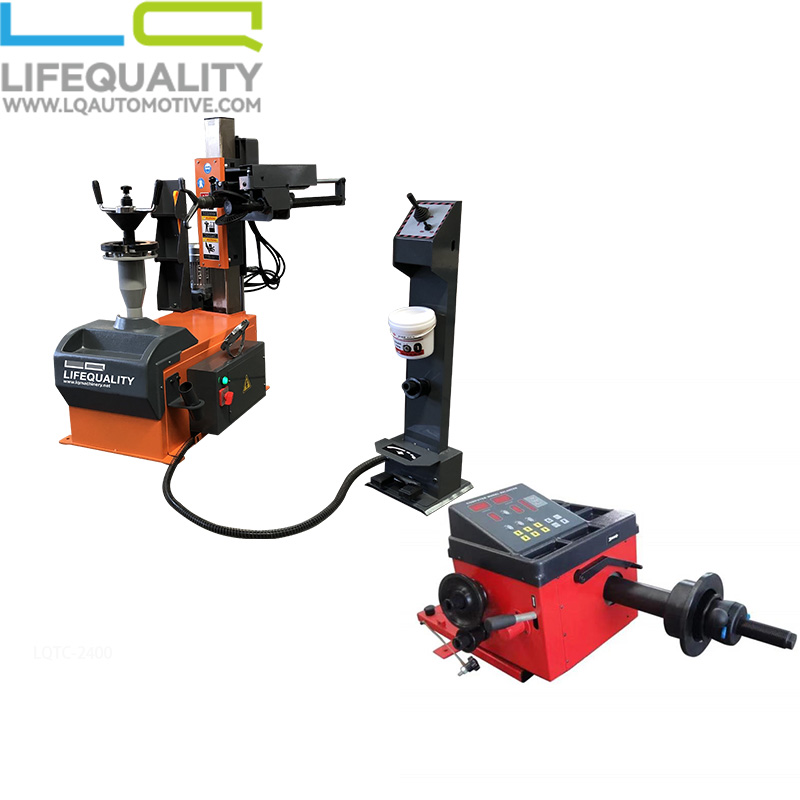

CAR TIRE CHANGER LQTC-3000
Technical parameters
Rim diameter : 10"-30"
Max. wheel diameter: 1200mm
Tire width: 3"-16"
Working pressure: 0~13bar
Hydraulic motor: 1.5kw
Gear box motor：1.5kw
Voltage：415V/380V/220V/240V/110V
Machine weight: 188kg
Application range
Applicable for changing car tyres whose rim diameter is between 10"-30".
Suitable for RSC tyres. Suitable for mobile working.
Product features
Changing tyres of different rim diameters through adjusting changing head forward or back,when adjusted to the best position,it will be easy and smooth to change tyres and avoid hurting tyres.
Machine functions
1. Excellent electronic control system, automatically power off when the machine stops operating, safe, energy-saving, stable and efficient.
2. The center column integration 2.0, compared with the previous generation, changed from pneumatic to hydraulic. Compared with pneumatic, hydraulic is more stable, with better control and efficiency. The controllability continues the previous generation, and the overall performance is better than the previous generation.
3. The bottom bracket 2.0, compared with the previous generation, does not require follow-up maintenance and is not broken for life.
4. The central axis lock core system can be locked with a slight twist, the structure is simple and easy to operate, and the failure rate is extremely low.
5. The hydraulic system provides a strong power guarantee when working, and the stability brought by the combination with the electronic control system is unmatched by pneumatic products.
6. The large aluminum alloy cylinder with a diameter of 200mm, the tire is strong and powerful, and the working efficiency and service life are twice that of ordinary traditional machines.
WHEEL BALANCER LQBL-8600
Technical parameters
Rim diameter：10"-24"
Max. tire diameter：1000mm
Tire width：1.5"-16"
Max. tire weight: 70kg
Rotation speed: 200r/min
Balance precision: ±1g
Motor：110V/240V/220V/250W
Machine net weight: 42kg
Gross weight: 62kg
Application range
This product makes fine adjustment for tyres of various light vehicles.Suitable for mobile working.
Machine functions
1.It can realize automatic dynamic balance ,static balance and aluminum alloy rim balance.
2.Advanced pressure sensor,pressure datas show high precision.
3.The keyboard is resistant to scratch ensuring its long service life.
4.New type of ruler can be used for you maximum 24 inch rim.
5.Its traditional design makes it simple to learn, convenient to use and easy to solve aftersale problems.
