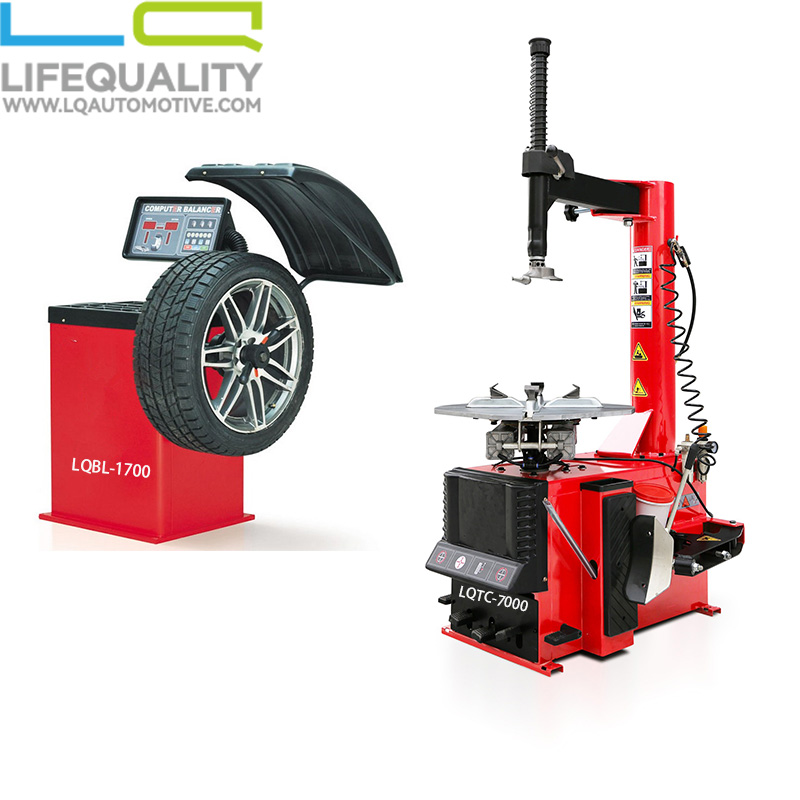

TYRE CHANGER LQTC-7000
Technical parameters
Rim clamp from outside：10"-22"
Rim clamp from inside：12"-24"
Max. wheel diameter：1040 mm
Tire width：3"-15"
Working pressure：8~10bar
Voltage：415V/380V/240V/220V/110V
Power：0.75kw/1.1kw
Machine weight：186kg
Application range
Applicable for changing and inflating car tyres whose rim diameter is between 10"-24".
Product features
Adopting semi-automatic lateral swinging arm to change tyres.
Machine functions
1. Central pressing tyre function makes jaws grip rim fastly.
2. Adjusting mobile slider to be suitable for different rim ranges.
3. The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
4. The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.
5. The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.
6. The round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.
7. The tools touching rim directly like changing working head,jaws,crwobar and spade are all equipped with protector,these protectors ensure no hurt to the rim.
8. It has good personal presentation,thick steel plate and super strong rigidness.
WHEEL BALANCER LQBL-1700
Technical Parameter
Rim diameter: 10"-24"
Maximum wheel diameter: 1000mm
Rim width: 1.5"-16"
Maximum wheel weight: 70kg
Spindle speed: 200r/min
Precision:±1g
Motor parameters：110V/220V/240V/250W
Equipment net weight：95kg
Product Features
1. Equipped with fully automatic dynamic balancing and aluminum alloy rim balancing functions.
2. The light three automatic measuring ruler allows for visible measurement data from all angles, ensuring accurate measurement while also making measurement more efficient.
3. Equipped with foot brake to ensure more accurate adhesion of lead blocks, ensuring no displacement and greatly improving balance efficiency.
4. Equipped with self detection fault function, it can assist customers in accurately identifying the problem when the machine malfunctions.
5. Adopting advanced sensors, the pressure numerical display accuracy is high.
6. The button film is anti slip, wear-resistant, and corrosion-resistant, with an ultra long service life.
7. The new type of ruler head can reach a maximum size of 24 inches.
8. The unique design makes it easy to learn, operate, and provide after-sales service.
9. Standard with protective cover.
