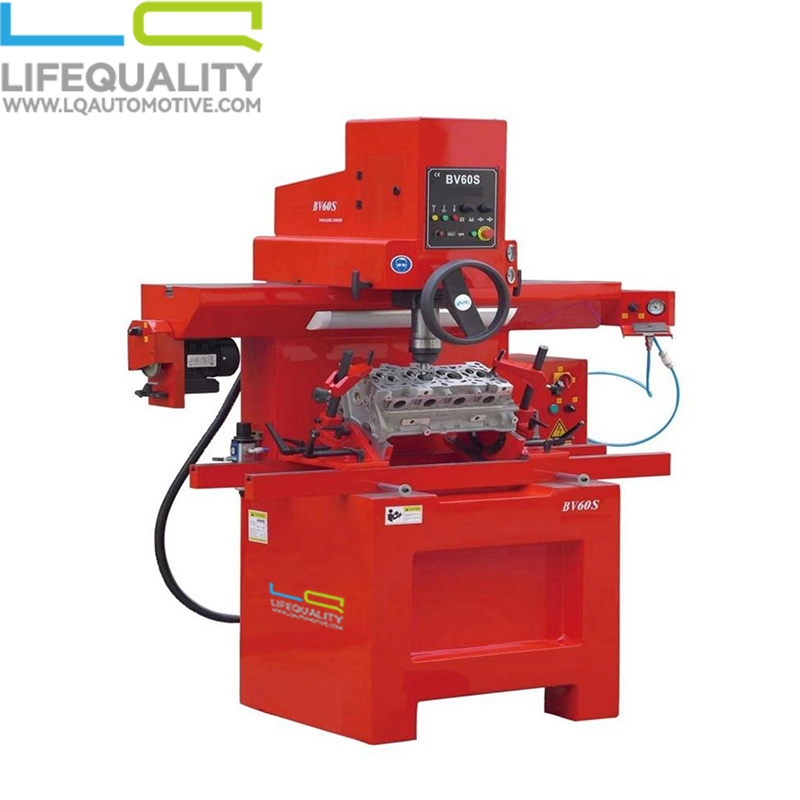

| Model | BV60S |
| Type of Drive System | Air / Electric |
| Max. Length of Cylinder Head | 1000 mm |
| Max. Width of Cylinder Head | 420 mm |
| Max. Height of Cylinder Head | 170 mm |
| Max. Boring Dia. | 14-60 mm |
| Work Head Longitudinal Floating Travel | 850 mm |
| Work Head Cross Floating Travel | 30 mm |
| Sphere-Cylinder Travel | 10 mm |
| Floating inclination angle of Spindle | ±3° |
| Vertical Travel of Spindle | 170 mm |
| Power of Spindle | 0.6 kW Servo Motor |
| Max. Torque of Spindle Motor | 12 Nm |
| Spindle Speed | 50-1000 rpm stepless |
| Power of Tools Grinder | 0.12 kW |
| Tools Grinder Rotation Speed | 2800 rpm |
| Clamper Rotary Angle | 360° |
| Required Rated Air Pressure | 5 Bar / 73 PSI |
| Required Max. Air Flow | 300 L/ Min |
| Required Continuous Air Flow | 60 L/Min |
| Overall Dimension of Machine(LxWxH) | 1100×930×1800 mm |
| Roughness of Finishing | Ra 0.6 |
| Package Size(L×D×H) | 1900×1300×2200 mm |
| N.W./G.W. | 780 Kg/980 Kg |
