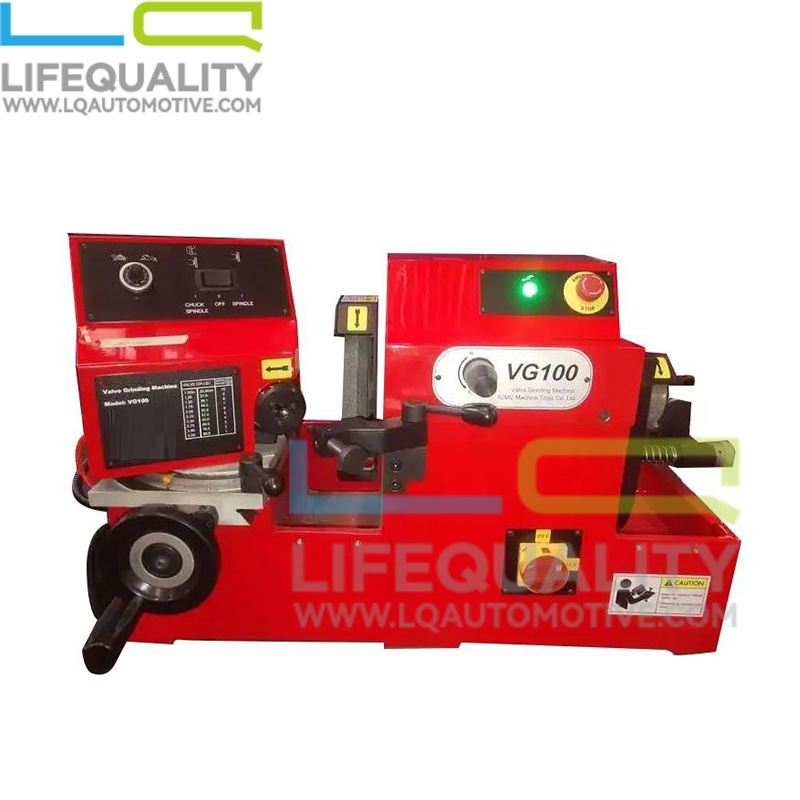

Model | VG100 | VG100A |
Type of Drive System | Air/ Electric |
Valve Stem Diameter Range with Chuck | 4.5-14 mm |
Valve Stem Length Range with Chuck | 54-260 mm |
Valve Head Diameter Range | 20-102 mm |
Valve Total Length Range | 90-315 mm |
Valve Head Grinding Angle | 15-550 |
Valve Stem Butt Grinding Angle | 0°and 45° |
Valve Head Grinding Wheel Diameter | 178 mm |
Valve Stem Butt Grinding Wheel Diameter | 76 mm |
Valve & Butt Grinding Wheel Speed | 3500 rpm at 50 Hz; 4200 rpm at 60 Hz |
Chuck Rotation Speed | 50-230 rpm |
Working Accuracy | ≤0.015 mm(0.006") | ≤0.005 mm(0.0002") |
Coolant Capacity | 3 Liter |
Required Rated Air Pressure | 6 Bar/85 PSI |
Power of Grinding Wheel Motor | 0.37 kW |
Power of Chuck Rotation Motor | 0.09 kW |
Overall Dimension of Machine | 945×650×430 mm |
Overall Dimension of Tools Cabinet | 700×380×810 mm |
Package Size of Machine | 930×710×690 mm |
Package Size of Tools Cabinet | 850×550×1070 mm |
N.W. of Machine | 130Kg |
G.W. of Machine | 160 Kg |
N.W. of Tools Cabinet | 50 Kg |
G.W. of Tools Cabinet | 70Kg |
