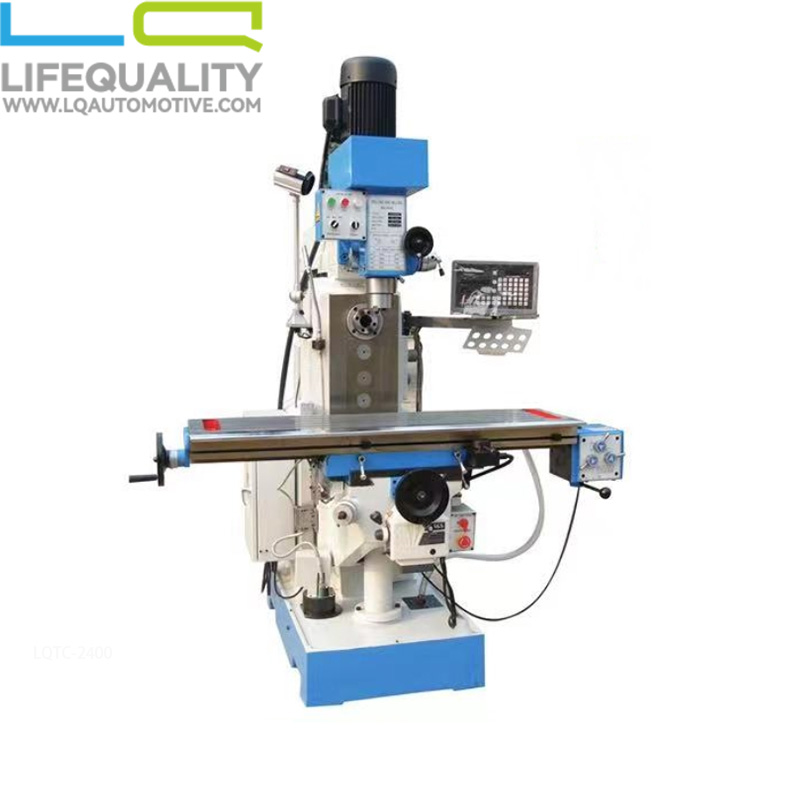

Vertical Universal Drilling and Milling Machine with High Precision (ZX6350C)
Specification:
ITEM :XZ6350C(ZX6350C)
Spindle taper:ISO40
Max.drilling diameter:50mm,30mm
Distance from spindle to table:100-550mm
Distance from horizontal spindle to table:0-380mm
Distance from spindle to column:200-700mm
Spindle speeds:(8)115-1750r.p.m(V)(12)40-130Or.p.m(H)
Spindle travel:120mm
Max.tapping dia.:M16
Max.horizontal milling dia.:120mm
Max.vertical milling:25mm
Max.boring dia:120mm
Head movement(left/right): 45 degree
Table size:1200x280
Table travel(horizontal/cross/vertical):680x320×450mm
Feeding range of longitudinal travel:(8)24-720mm/min
X-axis rapid feed speed:1180mm/min
Max weight of workpiece:300kg
T-slot number /width/distance:3/14mm/63mm
Horse power for main motor:0.85/1.5KW/2.2KW
X axis driving motor:370W
Overall dimension:1660x1340×2150mm
N.W/G.W.:1250/1350kg
