Features
1. Hydraulic driven cylinder with wire rope lifting system through sheaves.

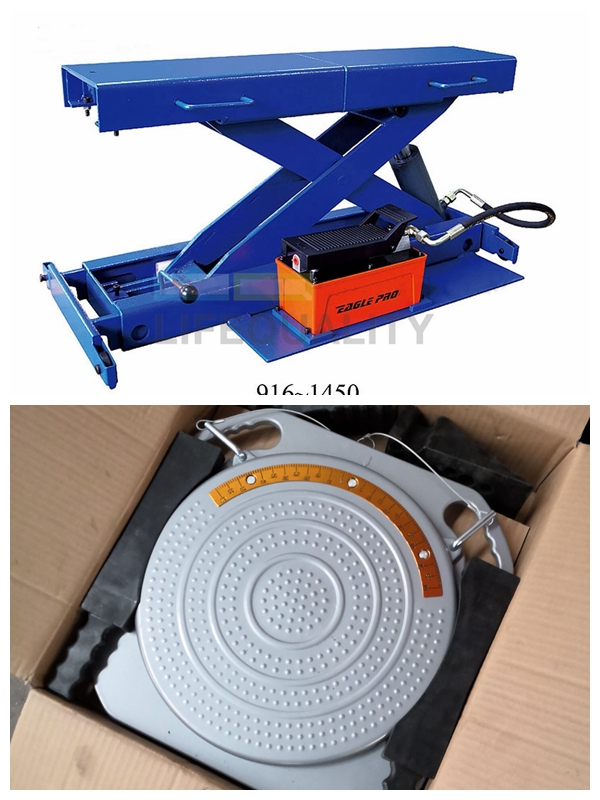

2. Equipped with hydraulic driven rolling jack, manual lock release with pneumatic pump
3. Automatic safety locks and pneumatic lock release.

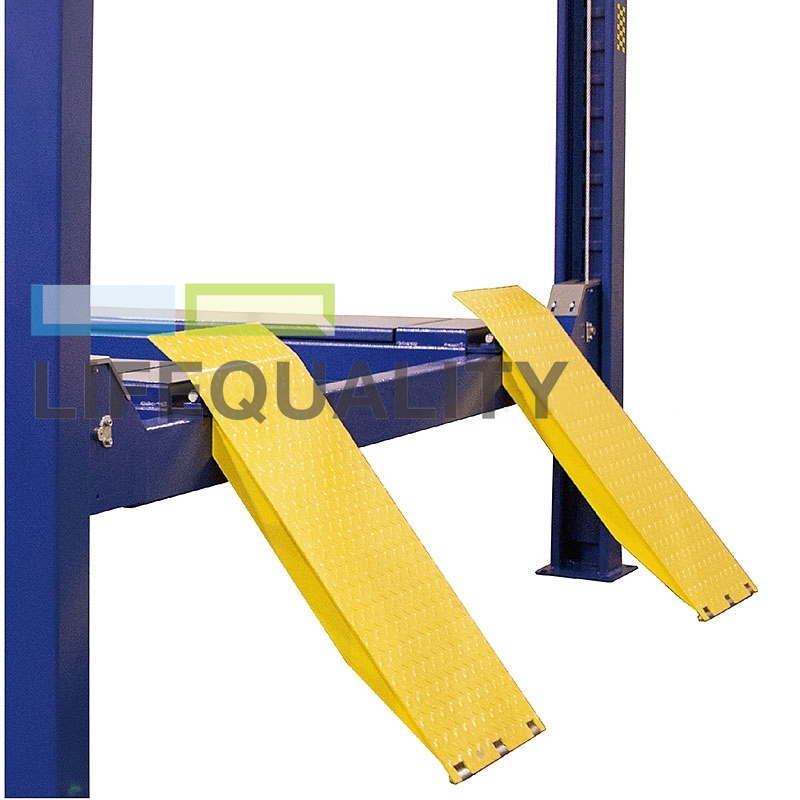

4. Diamond steel plate runways and ramps.
5. Anti-falling blocks in four posts ensure the safety at different heights.
6. Steel parts to be sand blasted then anti-corrosion primer coated and top painted finish color.

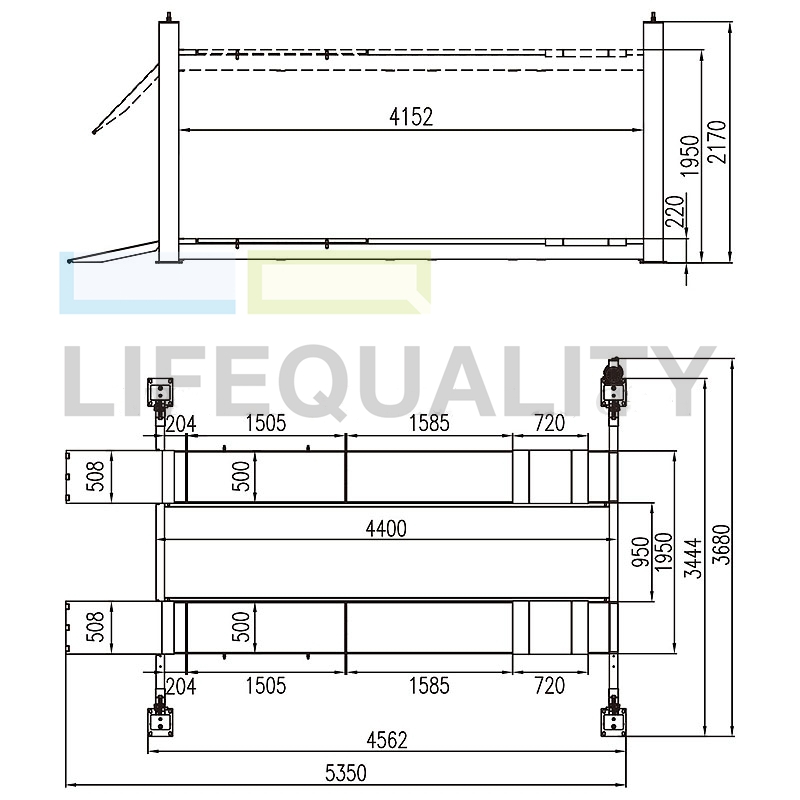

Parameter
| Model | LQAL-4500 |
| Lifting Capacity | 4.5 Tons |
| Lifting Height | 1950mm |
| Minimum height | 220mm |

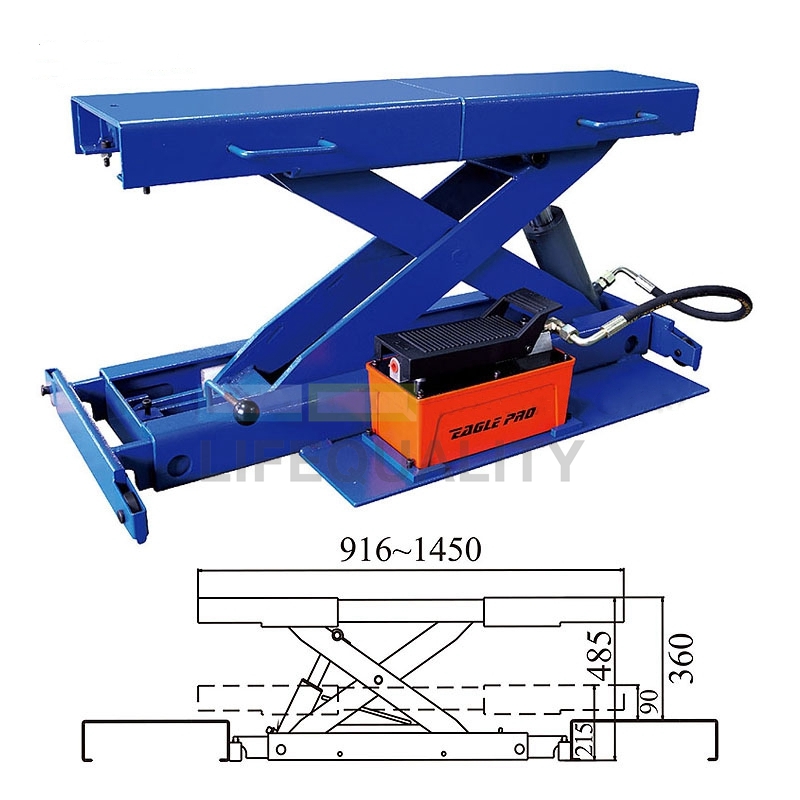

| Rolling jack lift height | 360mm |
| Total Height | 2230mm |
| Total width | 3235mm |
| Platform size | 4400x500mm (Length,Width) |
| Width Between Runways | 950mm |
| Power Supply / Motor capacity | 220V / 380V, 50Hz / 60Hz, 1Ph /3 Ph, 2.2 Kw |
| Lock Release | Pneumatic unlock |
| Drive Mode | Hydraulic driven+ Wire rope |
| Machine Net Weight | 1155kgs |
| Machine Gross Weight | 1195kgs |
